Voltage References 5.0V Shunt Reference
Features：
Ultracompact SC70 and SOT-23-3 packages

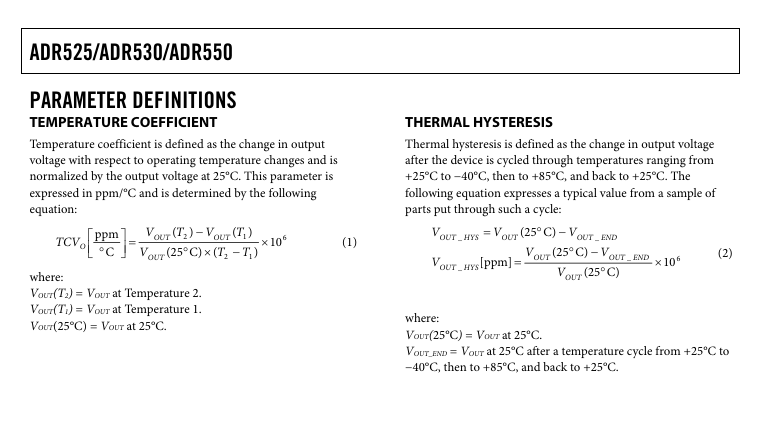

Temperature coefficient: 40 ppm/°C (maximum)
2× the temperature coefficient improvement over the LM4040
Pin compatible with LM4040/LM4050

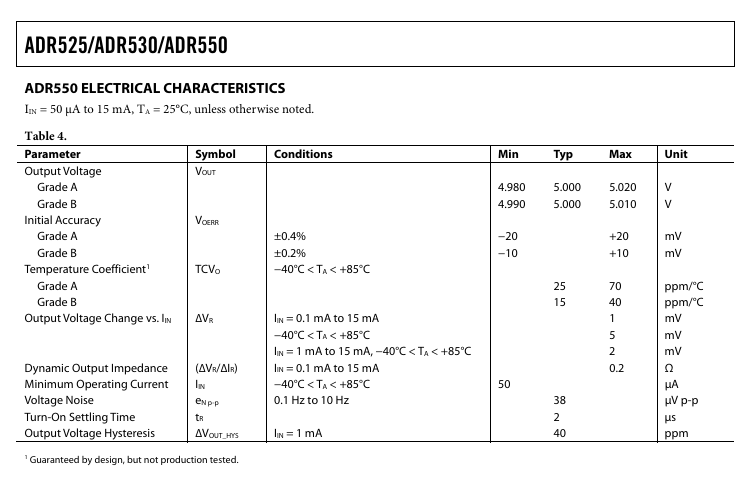

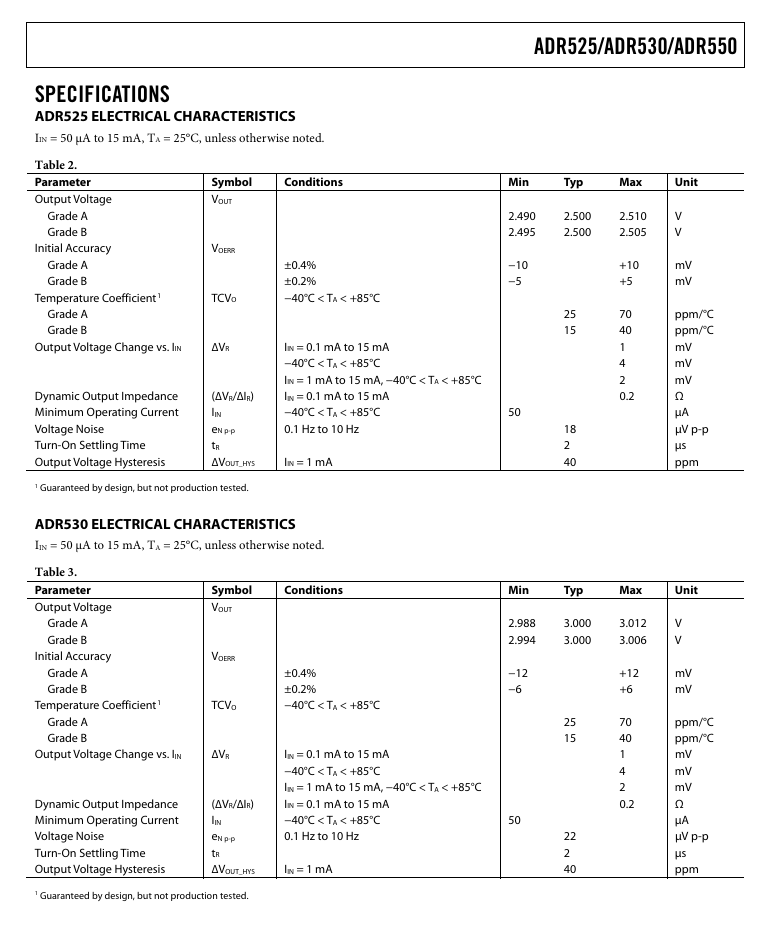

Initial accuracy: ±0.2%
Low output voltage noise: 14 μVP-P @
2.5 V output
No external capacitor required

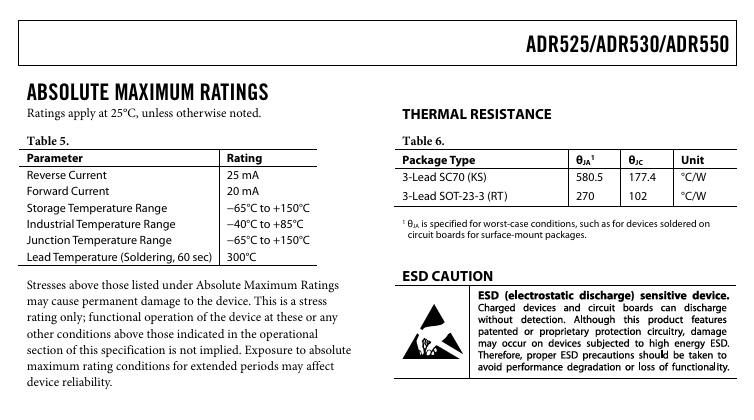

Operating current range: 50 μA to 15 mA
Industrial temperature range:
−40°C to +85°C

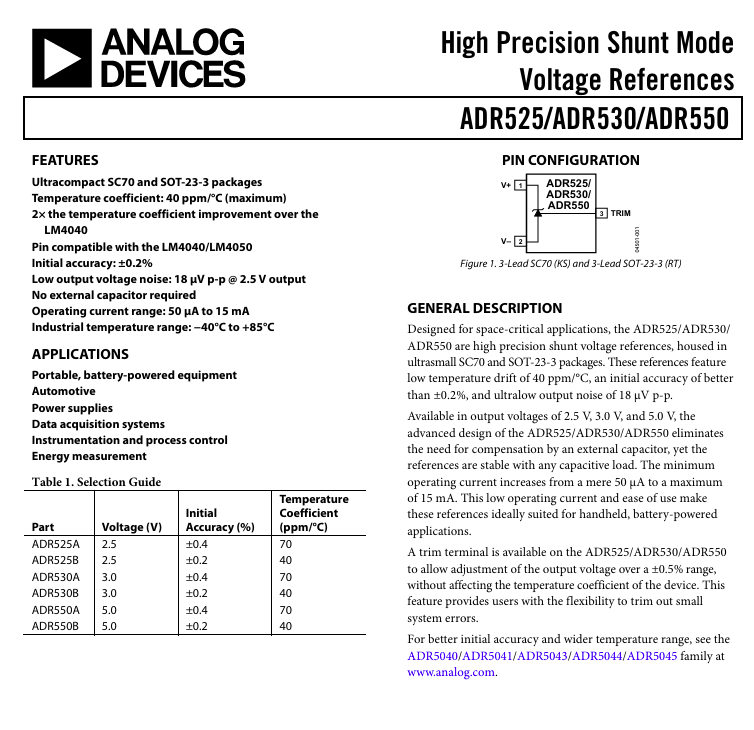

Designed for space-critical applications, the ADR525 / ADR530 / ADR550 are high precision shunt voltage references, housed in ultrasmall SC70 and SOT-23-3 packages. These references feature low temperature drift of 40 ppm/°C, an initial accuracy of better than ±0.2%, and ultralow output noise of 18 μVP-P.
Available in output voltages of 2.5 V, 3.0 V, and 5.0 V, the advanced design of the ADR525 / ADR530 / ADR550 eliminates the need for compensation by an external capacitor, yet the references are stable with any capacitive load. The minimum operating current increases from a mere 50 μA to a maximum of 15 mA. This low operating current and ease of use make these references ideally suited for handheld, battery-powered applications.
A trim terminal is available on the ADR525 / ADR530 / ADR550 to allow adjustment of the output voltage over a ±0.5% range, without affecting the temperature coefficient of the device. This feature provides users with the flexibility to trim out small system errors.
APPLICATIONS
Portable, battery-powered equipment
Automotive
Power supplies
Data acquisition systems
Instrumentation and process control
Energy measurement
