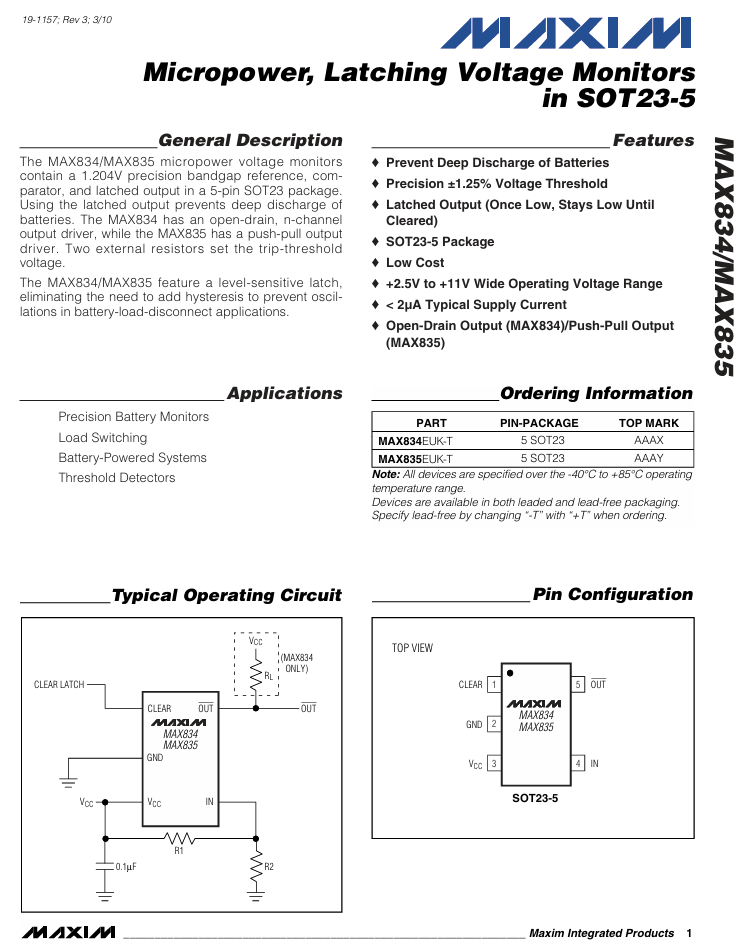

Supervisory Circuits Micropower, Latching Voltage Monitors in
Features
Prevent Deep Discharge of Batteries
Precision ±1.25% Voltage Threshold
Latched Output (Once Low, Stays Low Until Cleared)

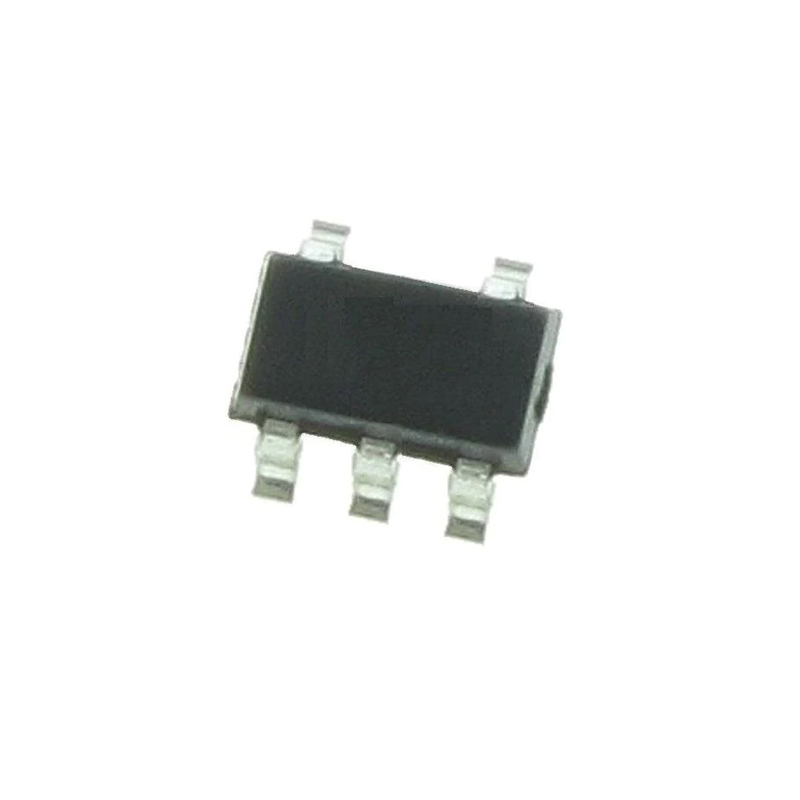

SOT23-5 Package
Low Cost
+2.5V to +11V Wide Operating Voltage Range
< 2µA Typical Supply Current
Open-Drain Output (MAX834)/Push-Pull Output (MAX835)
The MAX834/MAX835 micropower voltage monitors contain a 1.204V precision bandgap reference, comparator, and latched output in a 5-pin SOT23 package. Using the latched output prevents deep discharge of batteries. The MAX834 has an open-drain, n-channel output driver, while the MAX835 has a push-pull output driver. Two external resistors set the trip-threshold voltage.
The MAX834/MAX835 feature a level-sensitive latch, eliminating the need to add hysteresis to prevent oscillations in battery-load-disconnect applications.
ApplicationsBattery-Powered Applications
Load Switching
Precision Battery Monitoring
Threshold Detectors
