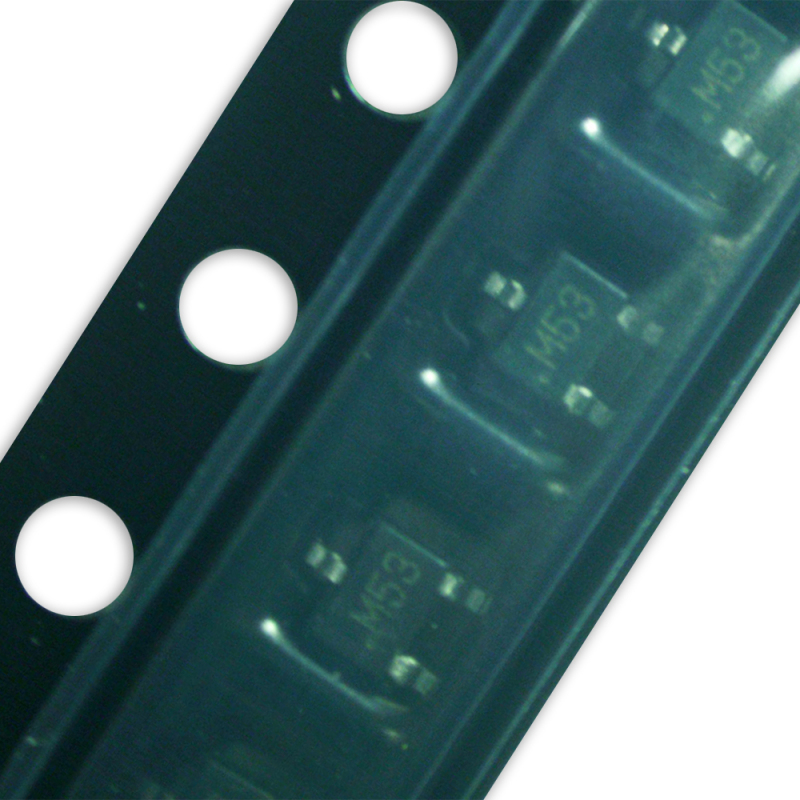

Supervisory Circuits MICROPROCESSOR SUPERVISOR IN SC701I.C.
Features：Specified over Temperature
Low Power Consumption (17 µA)
Precision Voltage Monitor: 2.5 V, 3 V, 3.3 V, 5 V Options
Reset Assertion Down to 1 V VCC
140 ms Min Power-On Reset
Push-Pull RESET Output

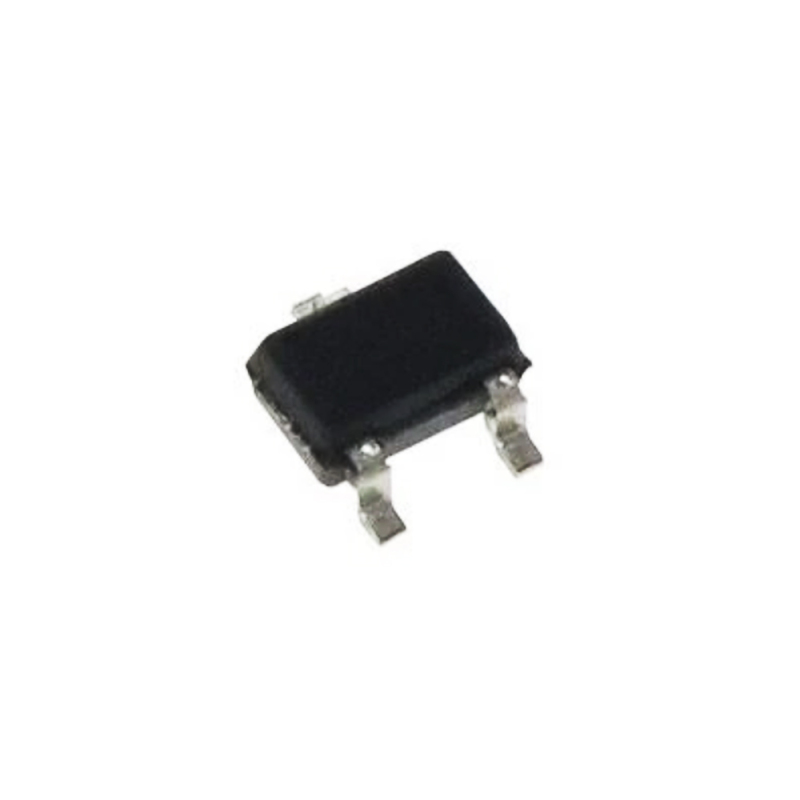

SC70 and SOT-23 Packages
The ADM809 supervisory circuit monitors the power supply voltage in microprocessor systems. It provides a reset output during power-up, power-down and brownout conditions. On power-up, an internal timer holds reset asserted for 240ms. This holds the microprocessor in a reset state until conditions have stabilized. The RESET output remains operational with VCC as low as 1V. The ADM809 provides an active-low reset signal RESET, and has a push-pull output stage.
Seven reset threshold options are available. The reset comparator features built-in glitch immunity, making it immune to fast transients on VCC.
The ADM809 is available in 3-lead SOT-23 and SC70 and consumes only 17µA, making it suitable for low power portable equipment.
APPLICATIONSMicroprocessor systems
Computers
Controllers
Intelligent instruments
Automotive systems

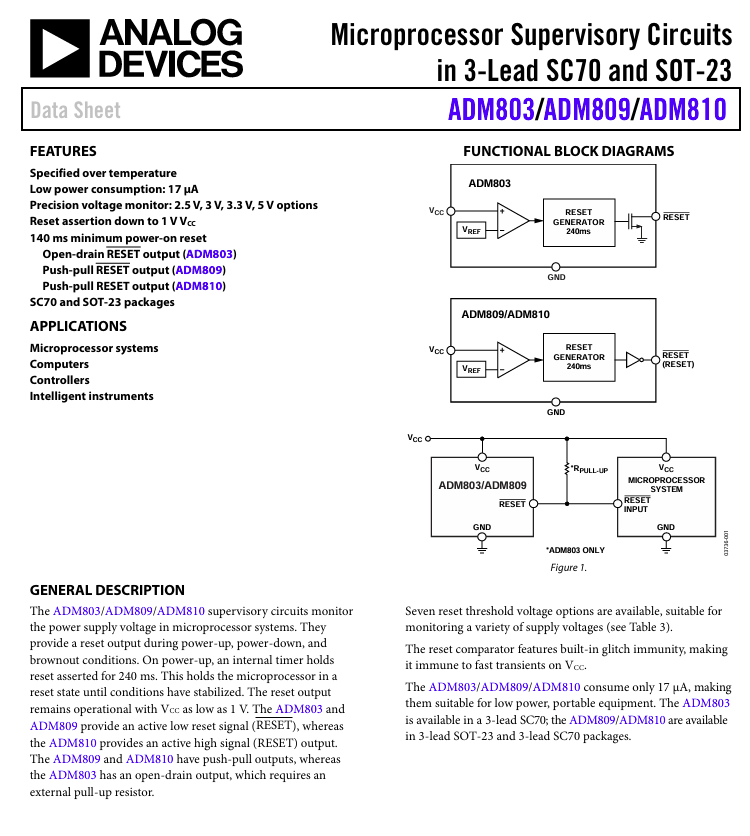

ADM809SAKSZ-REEL7 Datasheet (PDF)
