Features
Ultralow RMS Noise: 0.8µVRMS (10Hz to 100kHz)
Ultralow Spot Noise: 2nV/√Hz at 10kHz
Ultrahigh PSRR: 76dB at 1MHz
Output Current: 500mA
Wide Input Voltage Range: 1.8V to 20V
Single Capacitor Improves Noise and PSRR
100µA SET Pin Current: ±1% Initial Accuracy
Single Resistor Programs Output Voltage
High Bandwidth: 1MHz
Programmable Current Limit
Low Dropout Voltage: 260mV
Output Voltage Range: 0V to 15V
Programmable Power Good
Fast Start-Up Capability
Precision Enable/UVLO
Parallelable for Lower Noise and Higher Current
See data sheet for additional features
LT3045-EP Supports Defense and Aerospace Applications (AQEC Standard)
Download LT3045-EP Data Sheet (pdf)
Military Temperature Range (–55°C to 150°C)
Controlled Manufacturing Baseline
One Assembly/Test Site
One Fabrication Site
Product Change Notification
Qualification Data Available on Request
V62/21614 Data Sheet

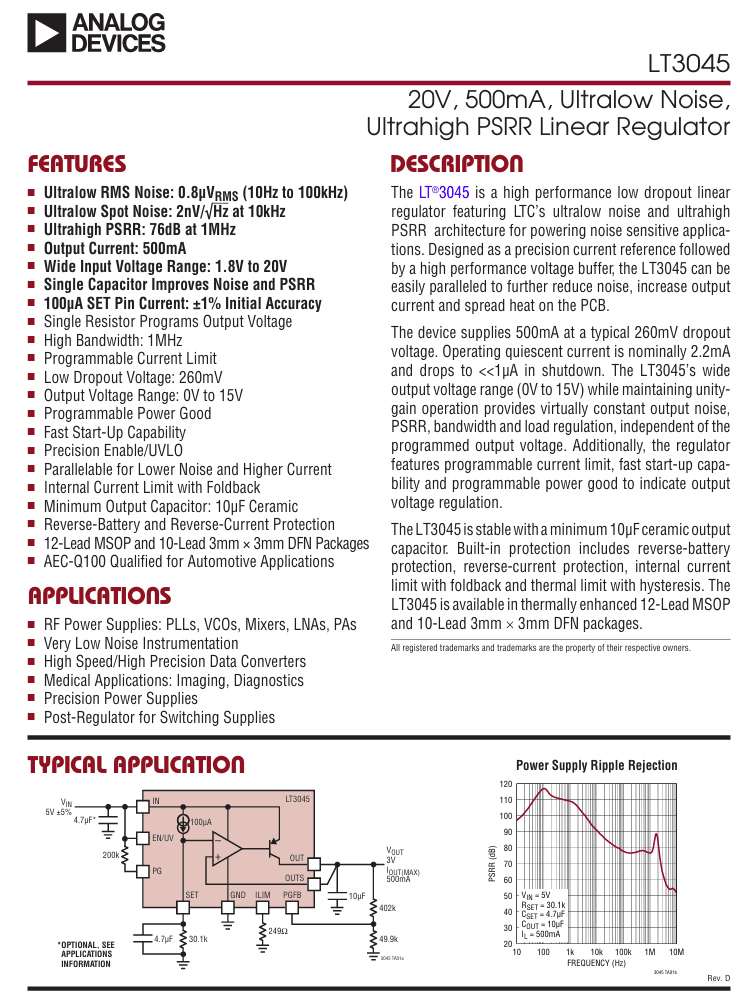

The LT3045 is a high performance low dropout linear regulator featuring LTC’s ultralow noise and ultrahigh PSRR architecture for powering noise sensitive applications. Designed as a precision current reference followed by a high performance voltage buffer, the LT3045 can be easily paralleled to further reduce noise, increase output current and spread heat on the PCB.
The device supplies 500mA at a typical 260mV dropout voltage. Operating quiescent current is nominally 2.2mA and drops to <<1µA in shutdown. The LT3045’s wide output voltage range (0V to 15V) while maintaining unity-gain operation provides virtually constant output noise, PSRR, bandwidth and load regulation, independent of the programmed output voltage. Additionally, the regulator features programmable current limit, fast start-up capability and programmable power good to indicate output voltage regulation.
The LT3045 is stable with a minimum 10µF ceramic output capacitor. Built-in protection includes reverse-battery protection, reverse-current protection, internal current limit with foldback and thermal limit with hysteresis. The LT3045 is available in thermally enhanced 12-Lead MSOP and 10-Lead 3mm × 3mm DFN packages.
Applications
RF Power Supplies: PLLs, VCOs, Mixers, LNAs, PAs
Very Low Noise Instrumentation
High Speed/High Precision Data Converters
Medical Applications: Imaging, Diagnostics
Precision Power Supplies
Post-Regulator for Switching Supplies
