Precision Amplifiers 2x Zero-Drift Op Amps
Features
Maximum Offset Voltage of 3µV
Maximum Offset Voltage Drift of 30nV/°C

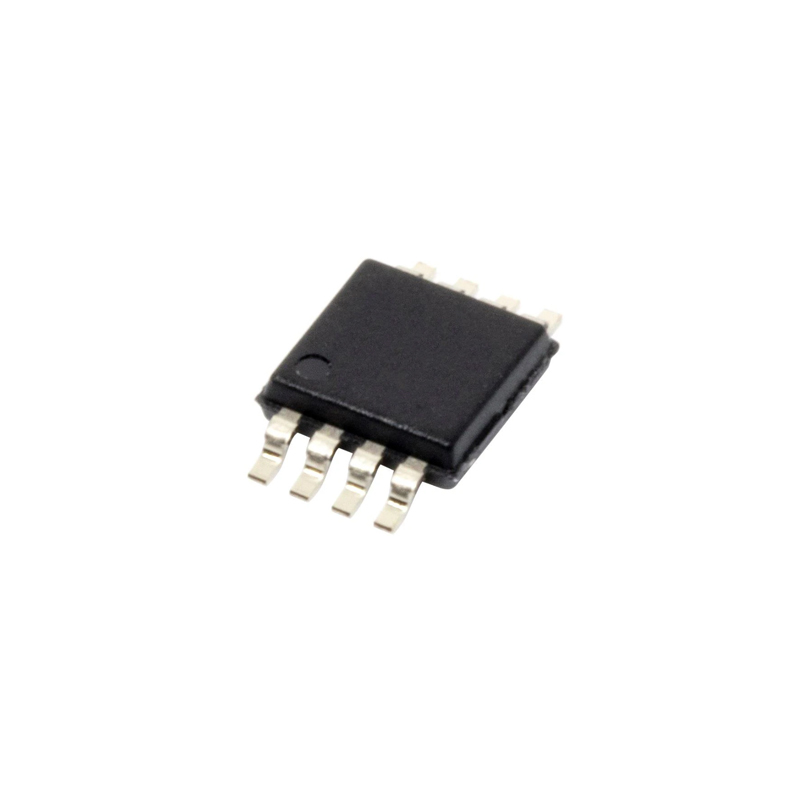

Small Footprint, Low Profile MS8/GN16 Packages
Single Supply Operation: 2.7V to ±5.5V
Noise: 1.5µVP-P (0.01Hz to 10Hz Typ)
Voltage Gain: 140dB (Typ)
PSRR: 130dB (Typ)
CMRR: 130dB (Typ)
Supply Current: 0.75mA (Typ) per Amplifier
Extended Common Mode Input Range
Output Swings Rail-to-Rail
Operating Temperature Range –40°C to 125°C
Available in 3mm × 3mm × 0.8mm DFN Package

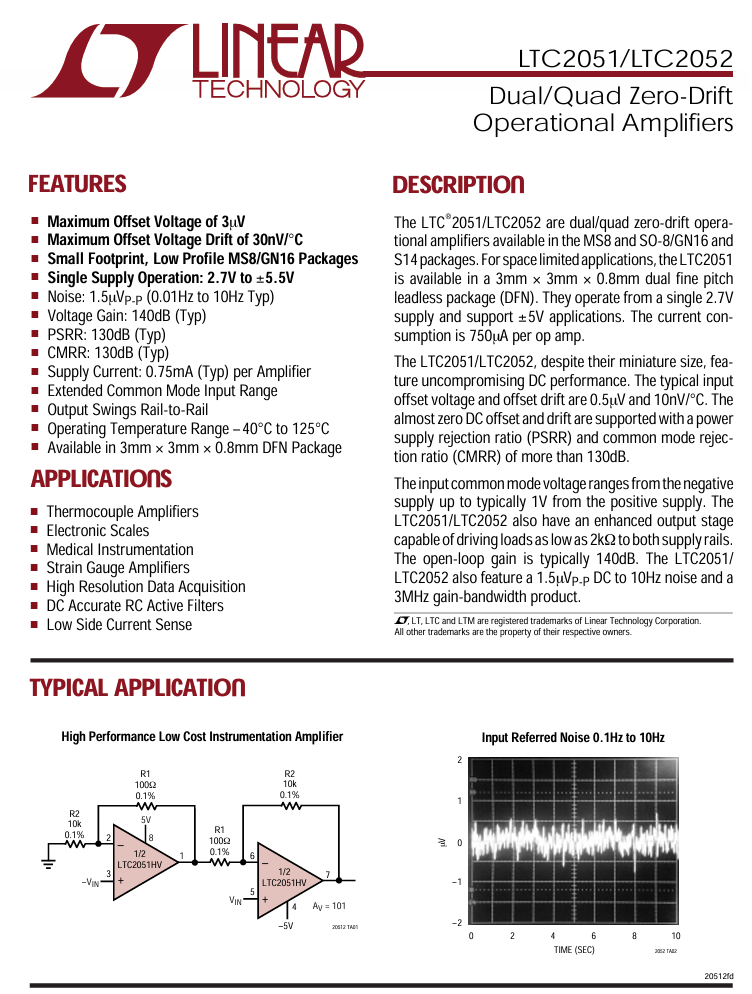

The LTC2051/LTC2052 are dual/quad zero-drift operational amplifiers available in the MS8 and SO-8/GN16 and S14 packages. For space limited applications, the LTC2051 is available in a 3mm × 3mm × 0.8mm dual fine pitch leadless package (DFN). They operate from a single 2.7V supply and support ±5V applications. The current consumption is 750µA per op amp.
The LTC2051/LTC2052, despite their miniature size, feature uncompromising DC performance. The typical input offset voltage and offset drift are 0.5µV and 10nV/°C. The almost zero DC offset and drift are supported with a power supply rejection ratio (PSRR) and common mode rejection ratio (CMRR) of more than 130dB.
The input common mode voltage ranges from the negative supply up to typically 1V from the positive supply. The LTC2051/LTC2052 also have an enhanced output stage capable of driving loads as low as 2kΩ to both supply rails. The open-loop gain is typically 140dB. The LTC2051/ LTC2052 also feature a 1.5µVP-P DC to 10Hz noise and a 3MHz gain-bandwidth product.
ApplicationsThermocouple Amplifiers
Electronic Scales
Medical Instrumentation
Strain Gauge Amplifiers
High Resolution Data Acquisition
DC Accurate RC Active Filters
Low Side Current Sense
