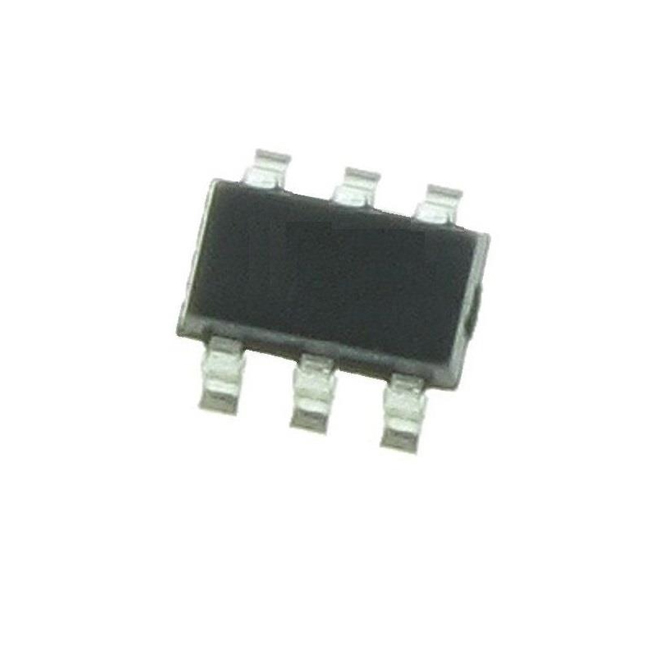

Current Sense Amplifiers -0.1 +36V, High Precision, Low Power Cur
Number of Channels:1 Channel
GBP‑Gain Bandwidth Product:1.8 kHz
Vcm‑Common Mode Voltage:-100 mV to 36 V
CMRR‑Common Mode Rejection Ratio:145 dB
Ib‑Input Bias Current:2 nA
Vos‑Input Offset Voltage:2 μV
Supply Voltage‑Max:5.5 V
Supply Voltage‑Min:1.7 V
Operating Supply Current:21 μA
Gain Error:0.05 %
Minimum Operating Temperature:-40 ℃
Maximum Operating Temperature:+125 ℃
3 dB Bandwidth:1.8 kHz
Amplifier Type:Current Sense Amplifier
Brand:Analog Devices / Maxim Integrated
Gain:100 V/V
Gain V/V:100 V/V
Input Type:Common Mode
Pd‑Power Dissipation:347.8 mW
Product:Current Sense Amplifiers
Product Type:Current Sense Amplifiers
PSRR‑Power Supply Rejection Ratio:110 dB
Shutdown:Shutdown
Factory Pack Quantity:2500
Subcategory:Amplifier ICs
Part # Aliases:MAX44284
Unit Weight:36 mg
