In Stock ! ADI LTC6090CS8E#TRPBF Operational Amplifiers - Op Amps

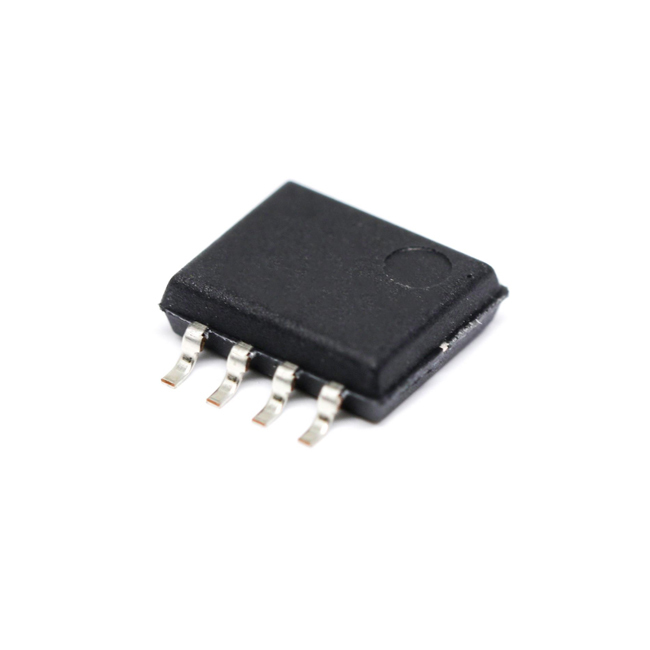

Name: In Stock ! ADI LTC6090CS8E#TRPBF Operational Amplifiers - Op Amps
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 31.24 USD
Availability: InStock

Brand : ADI
Date Code : 2314
Packing : Reel
Package : SOIC-8
Minimum Packing：2500pcs

$31.24

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

1/1

Description

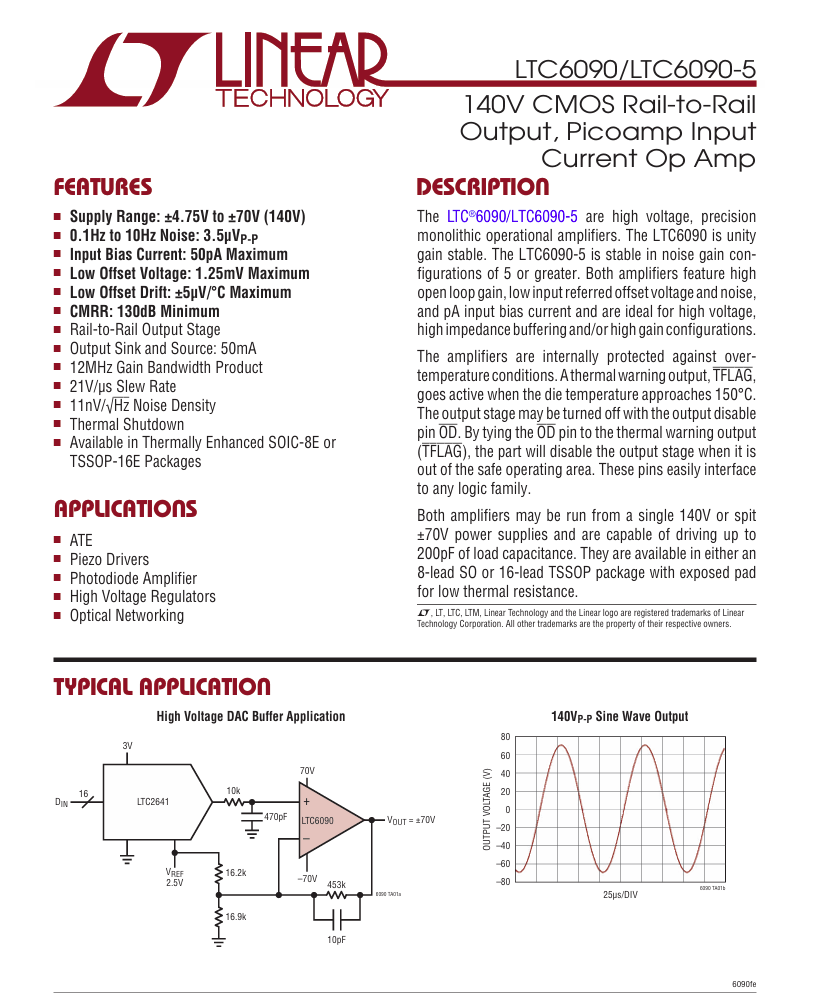

Operational Amplifiers - Op Amps 140V CMOS R2R Out, pA In C Op Amp

Number of Channels:1 Channel
GBP‑Gain Bandwidth Product:24 MHz
SR‑Slew Rate:24 V/μs
Vos‑Input Offset Voltage:330 μV
Ib‑Input Bias Current:3 pA
Supply Voltage‑Max:140 V
Supply Voltage‑Min:9.5 V
Operating Supply Current:2.7 mA
Output Current per Channel:50 mA
CMRR‑Common Mode Rejection Ratio:125 dB
en‑Input Voltage Noise Density:14 nV/sqrt Hz
Package/Case:SO‑8
Mounting Style:SMD/SMT
Shutdown:Shutdown
Minimum Operating Temperature:0 ℃
Maximum Operating Temperature:+70 ℃
In‑Input Noise Current Density:1 fA
Moisture Sensitive:Yes
Product Type:Op Amps‑Operational Amplifiers
Factory Pack Quantity:2500
Subcategory:Amplifier ICs
Unit Weight:75 mg
