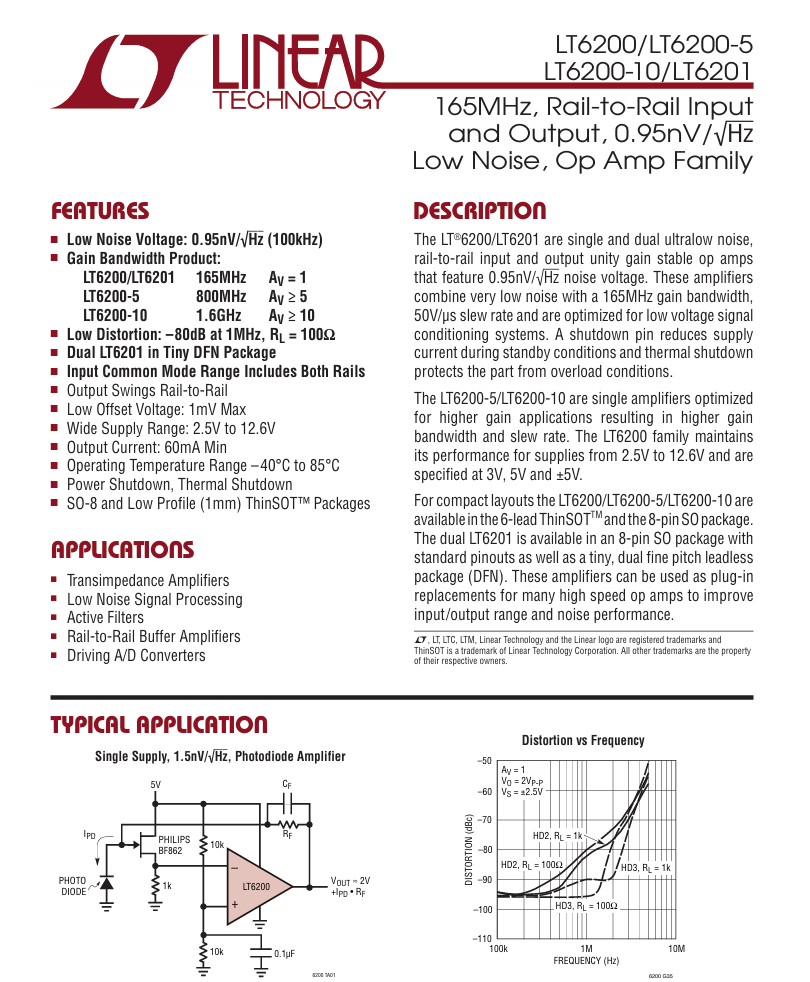

High Speed Operational Amplifiers 165MHz, R2R In & Out, 0.95nV/vHz L N
Number of Channels:1 Channel
GBP‑Gain Bandwidth Product:800 MHz
SR‑Slew Rate:210 V/μs
CMRR‑Common Mode Rejection Ratio:112 dB
Output Current per Channel:90 mA
Ib‑Input Bias Current:18 μA
Vos‑Input Offset Voltage:1.8 mV
Supply Voltage‑Max:12.6 V
Supply Voltage‑Min:2.5 V
Operating Supply Current:20 mA
Minimum Operating Temperature:0 ℃
Maximum Operating Temperature:+70 ℃
Mounting Style:SMD/SMT

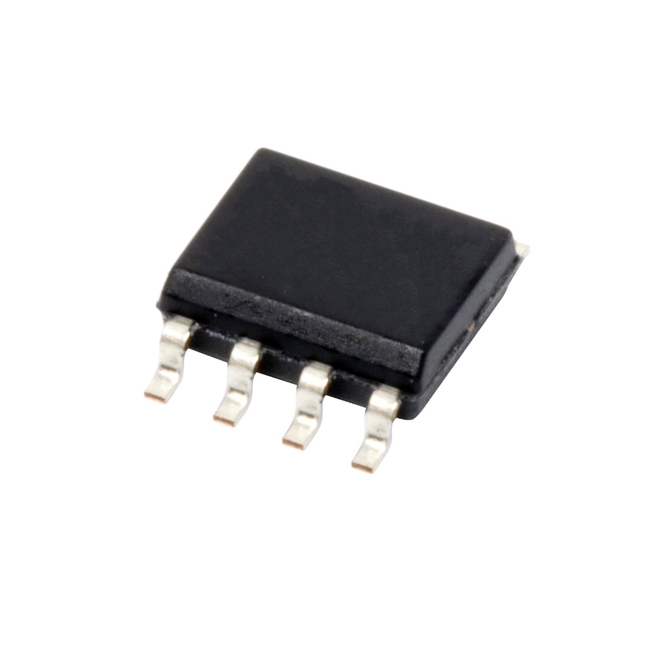

Package/Case:SOIC‑8
en‑Input Voltage Noise Density:0.95 nV/sqrt Hz
Gain:120 V/mV
Gain V/V:120 V/mV
Input Type:Rail‑to‑Rail
Ios‑Input Offset Current:5 μA
Maximum Input Resistance:570 kOhms
Output Type:Rail‑to‑Rail
Product:Operational Amplifiers
Product Type:Op Amps‑High Speed Operational Amplifiers
PSRR‑Power Supply Rejection Ratio:68 dB
Shutdown:No Shutdown
Factory Pack Quantity:100
Subcategory:Amplifier ICs
Unit Weight:100 mg
