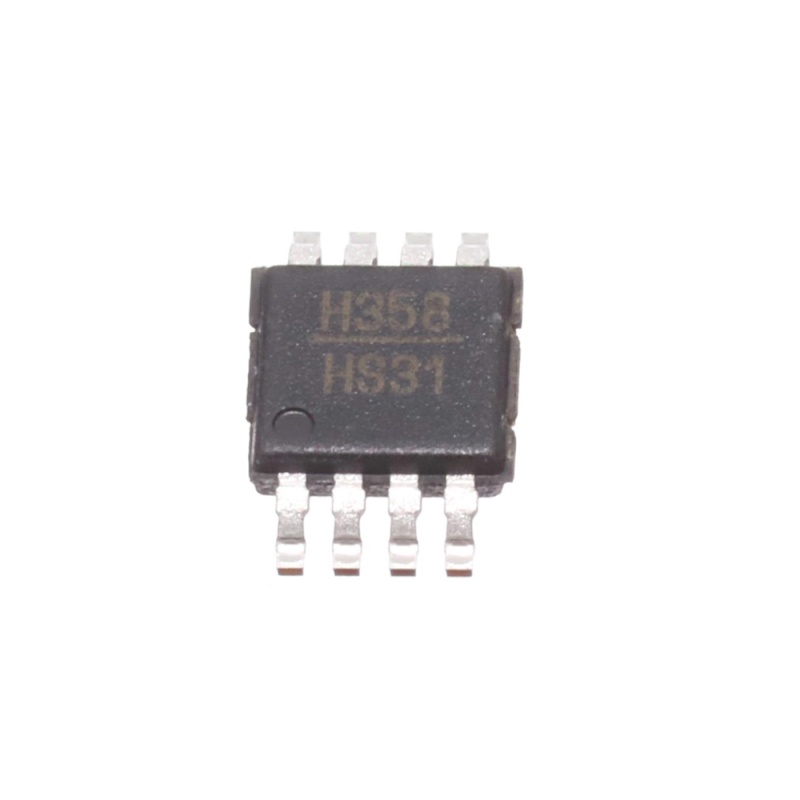

In Stock ! Analog Devices VCO Oscillators HMC358MS8GE

Name: In Stock ! Analog Devices VCO Oscillators HMC358MS8GE
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 26.7 USD
Availability: InStock

Brand : Analog Devices
Date Code : 2145/2213
Packing : Reel
Package : MSOP-8
Minimum Packing : 500pcs

$26.70

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

1/1

Description

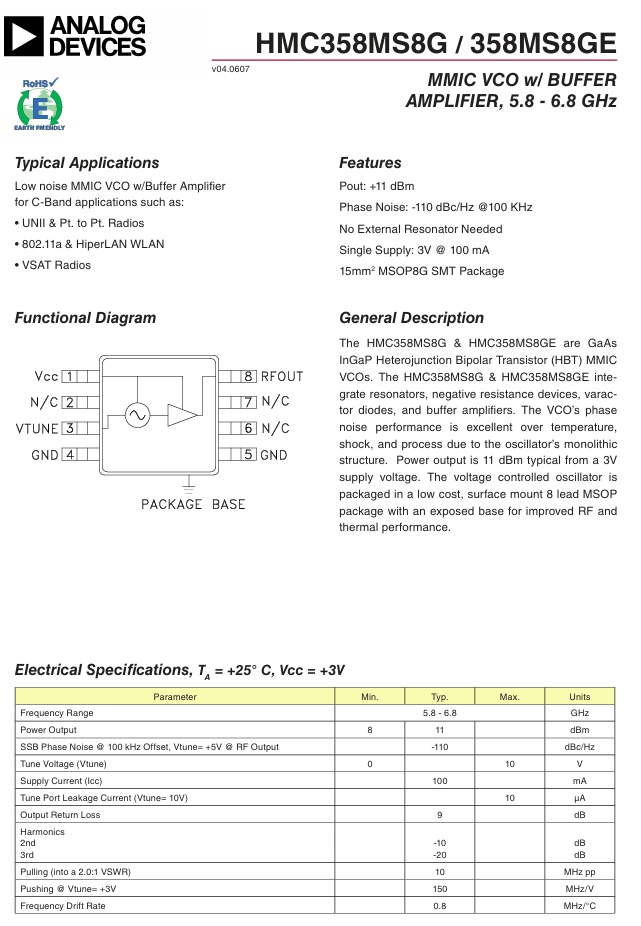

Features:
Pout: +11 dBm
Phase Noise: -110 dBc/Hz @100 KHz
No External Resonator Needed
Single Supply: 3V @ 100 mA
15 mm2 MSOP8G SMT Package

The HMC358MS8G(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC358MS8G(E) integrates resonators, negative resistance devices, varactor diodes, and buffer amplifiers. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is 11 dBm typical from a 3V supply voltage. The voltage controlled oscillator is packaged in a low cost, surface mount 8 lead MSOP package with an exposed base for improved RF and thermal performance.

APPLICATIONS

UNII & Point-to-Point Radios
802.11a & HiperLAN WLAN
VSAT Radios
