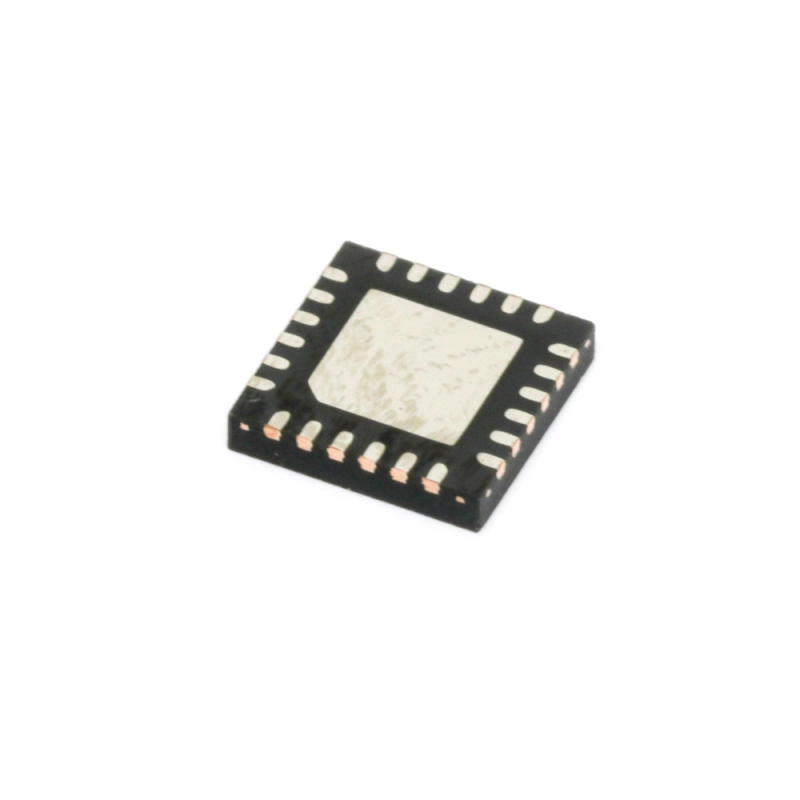

In Stock ! AD Differential Amplifiers ADA4939-2YCPZ-R7

Name: In Stock ! AD Differential Amplifiers ADA4939-2YCPZ-R7
Brand: YW SHOP
SKU: In Stock ; Ship In 48 Hours
Price: 21.3 USD
Availability: InStock

Brand : AD
Date Code : 2404
Packing : Reel
Package : LFCSP-24
Minimum Packing : 1500

$21.30

Received successfully

Coupon Code

CONTINUE SHOPPING

Discount

GET $10.00 OFF ON ORDERS OVER $100.00

Add to Favorites

facebook
line
twitter
whatsapp
pinterest
tumblr
linkedin

1/1

Description

Differential Amplifiers DualUltra Low Distortion Diff ADC Driver

GBP – Gain Bandwidth Product: 1.4 GHz
SR – Slew Rate: 6800 V/µs
Ib – Input Bias Current: 2.2 µA
Vos – Input Offset Voltage: 2.8 mV
Supply Voltage – Max: 5.25 V
Supply Voltage – Min: 3 V
Operating Supply Current: 37.7 mA
Minimum Operating Temperature: –40 °C
Maximum Operating Temperature: +105 °C
Gain V/V: 2 V/V
Height: 0.83 mm
Length: 4 mm
Maximum Input Resistance: 450 kΩ
Operating Supply Voltage: 5 V
PSRR – Power Supply Rejection Ratio: 80 dB (Max)
Factory Pack Quantity: 1500
Subcategory: Amplifier ICs
Supply Type: Single
Width: 4 mm
