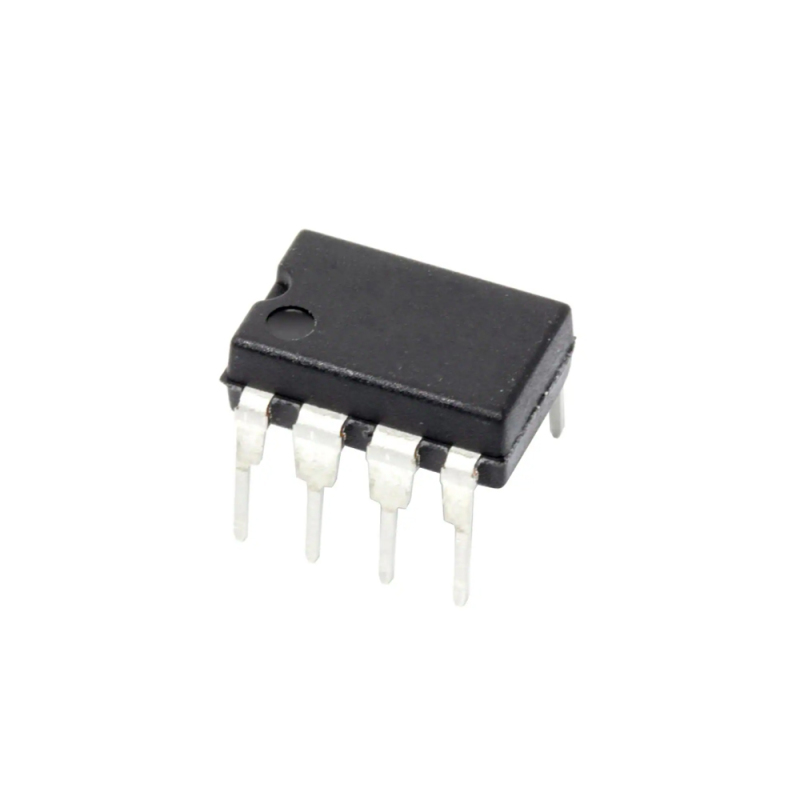

Precision Amplifiers DUAL FET R-TO-R 16MHZ AMP
Number of Channels: 2 Channel
GBP - Gain Bandwidth: 10 MHz
SR - Slew Rate: 25 V/us
Vos - Input Offset Voltage: 700 uV
Ib - Input Bias Current: 30 pA
Supply Voltage - Max: 36 V, +/- 18 V
Supply Voltage - Min: 3 V, +/- 1.5 V
Operating Supply Current: 7 mA
Output Current per Channel: 17 mA
CMRR - Common Mode Rejection Ratio: 82 dB
en - Input Voltage Noise Density: 16 nV/sqrt Hz
Minimum Operating Temperature: -40°C
Maximum Operating Temperature: +85°C
Dual Supply Voltage: +/- 3 V, +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
Height: 3.43 mm
Input Voltage Range - Max: 13.8 V
Length: 9.27 mm
Maximum Dual Supply Voltage: +/- 18 V
Minimum Dual Supply Voltage: +/- 1.5 V
Operating Supply Voltage: 3 V to 36 V
Pd - Power Dissipation: 1.3 W
