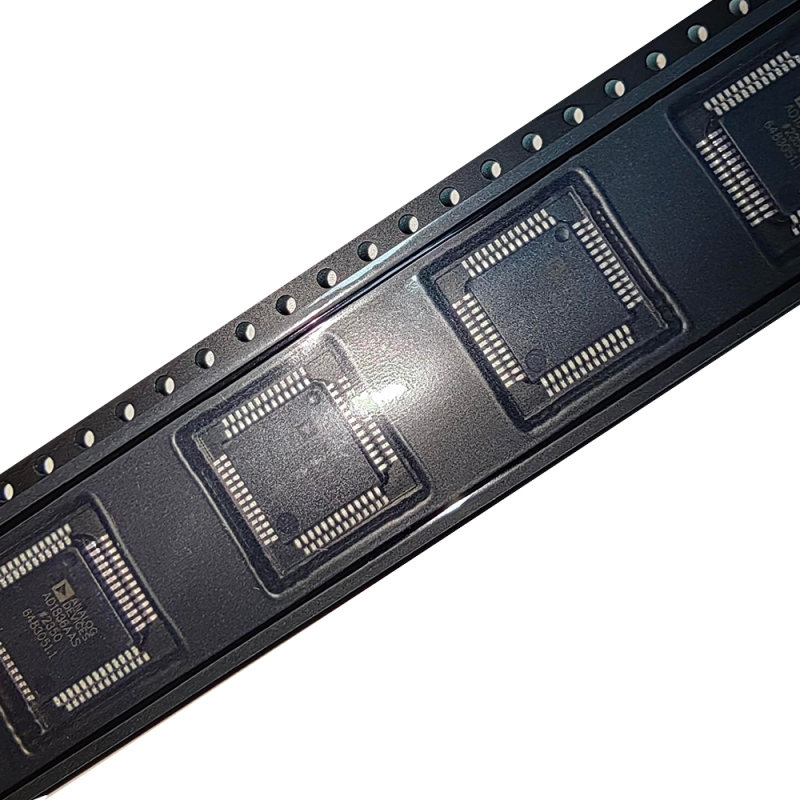

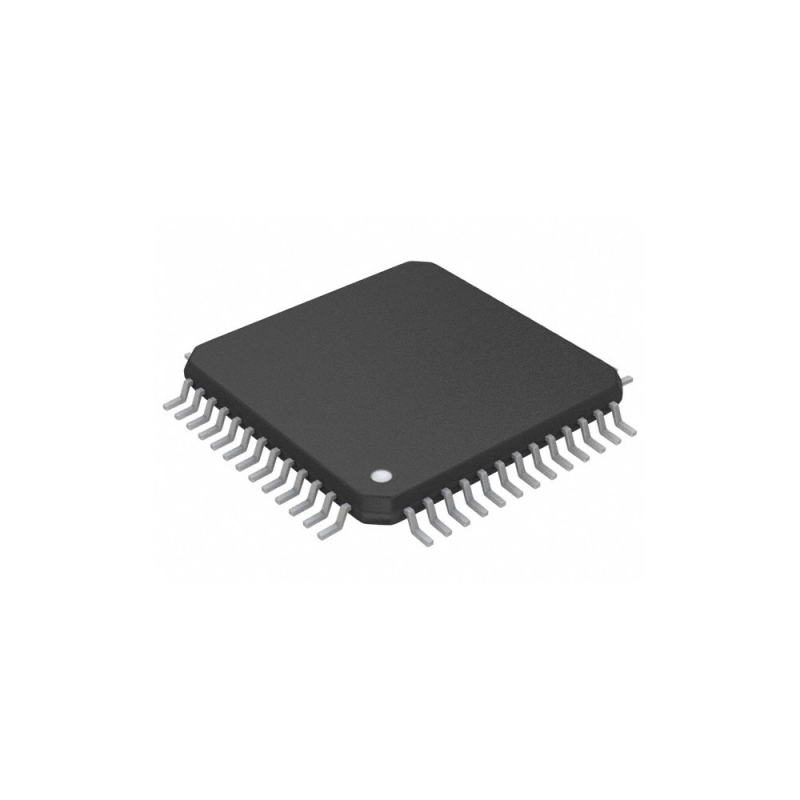

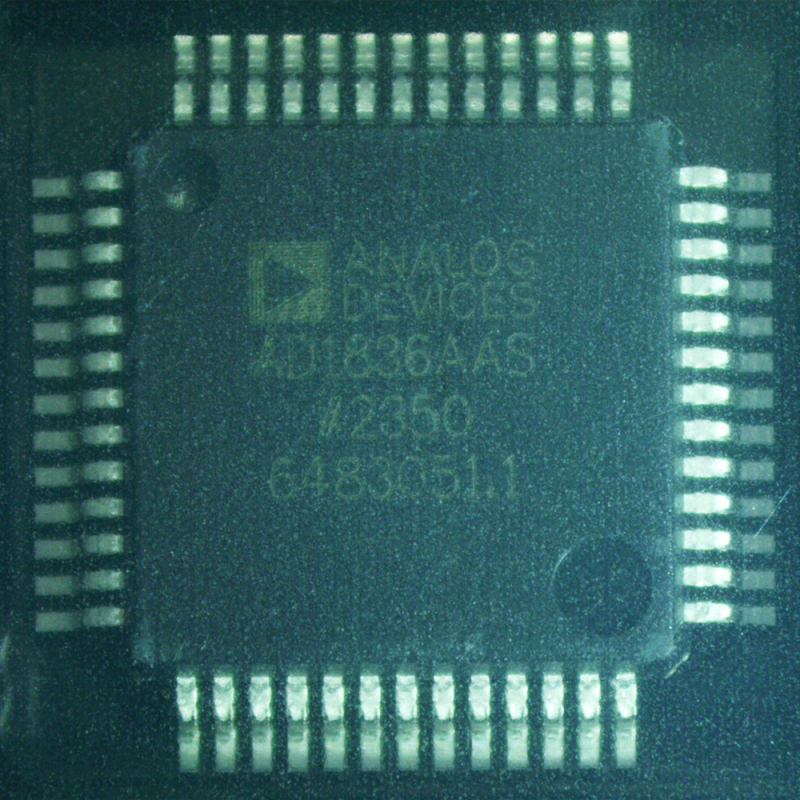

Features：IC CODEC 4ADC/6DAC 24 BIT 52MQFP
5 V multichannel audio system
Accepts 16-/18-/20-/24-bit data
Supports 24-bit and 96 kHz sample rate
Multibit Σ-∆ modulators with data directed scrambling
Differential output for optimum performance
ADCs: –92 dB THD + N, 105 dB SNR and dynamic range
DACs: –95 dB THD + N, 108 dB SNR and dynamic range
On-chip volume control with "auto-ramp" function
See datasheet for additional features

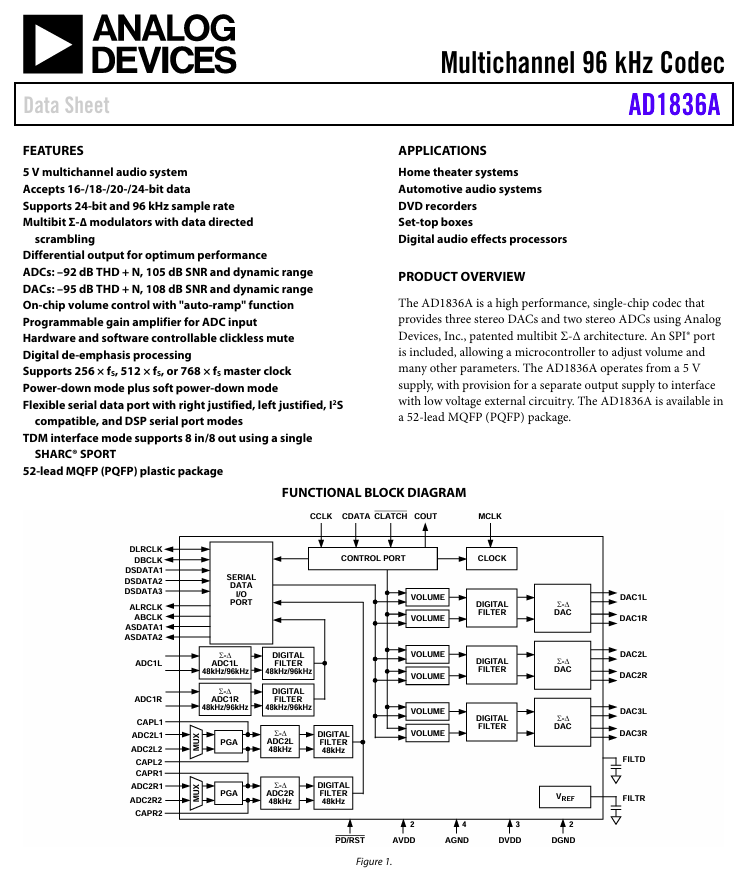

The AD1836A is a high performance, single-chip codec that provides three stereo DACs and two stereo ADCs using ADI’s patented multibit Σ-Δ architecture. An SPI® port is included, allowing a microcontroller to adjust volume and many other parameters. The AD1836A operates from a 5 V supply, with provision for a separate output supply to interface with low voltage external circuitry. The AD1836A is available in a 52-lead MQFP (PQFP) package.
APPLICATIONSHome theater systems
Automotive audio systems
DVD recorders
Set-top boxes
Digital audio effects processors
|
Resolution (Bits)
|
24 b
|
|
Number of ADCs / DACs
|
4 / 6
|
|
Sigma Delta
|
Yes
|
|
S/N Ratio, ADCs / DACs (db) Typ
|
105 / 108
|
|
Dynamic Range, ADCs / DACs (db) Typ
|
105 / 108
|
|
Voltage - Supply, Analog
|
4.75V ~ 5.25V
|
|
Voltage - Supply, Digital
|
4.75V ~ 5.25V
|
|
Operating Temperature
|
-40°C ~ 85°C
|
|
Mounting Type
|
Surface Mount
|
|
Package / Case
|
52-QFP
|
|
Supplier Device Package
|
52-MQFP (10x10)
|
