| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 600pcs |

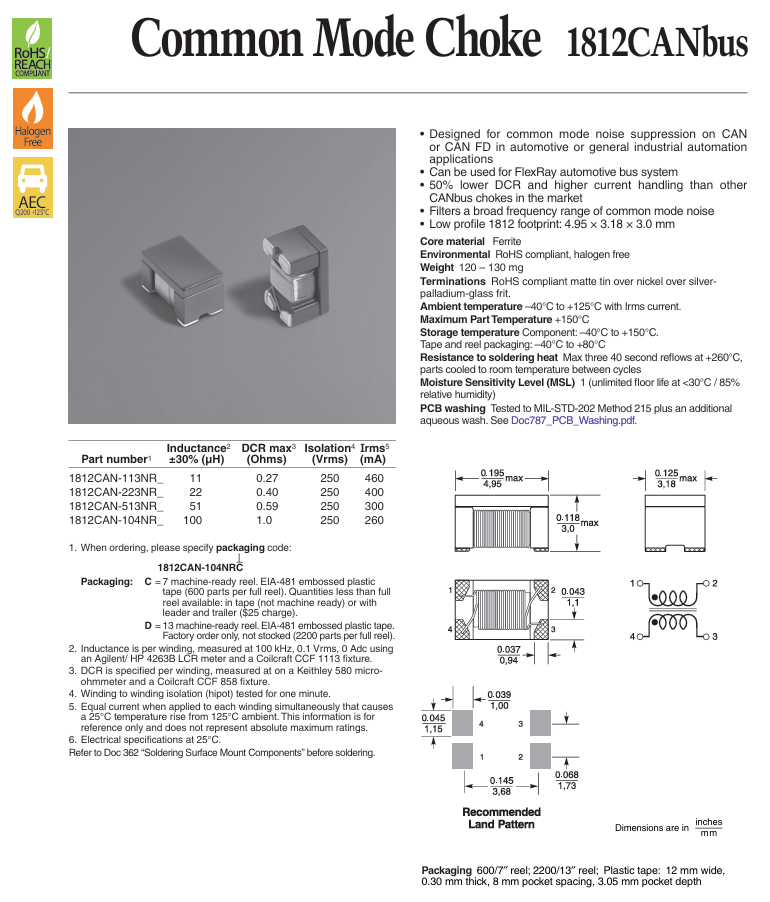

Common Mode Chokes / Filters
Features：
Our 1812CAN Series filters a broad frequency range of common mode noise with 50% lower DCR and higher current handling than other CANbus chokes in the market. They are designed for common mode noise suppression on CAN or CAN FD lines in automotive or general industrial automation applications, and can also be used for FlexRay automotive bus systems.
Inductance values from 11 µH to 100 µH

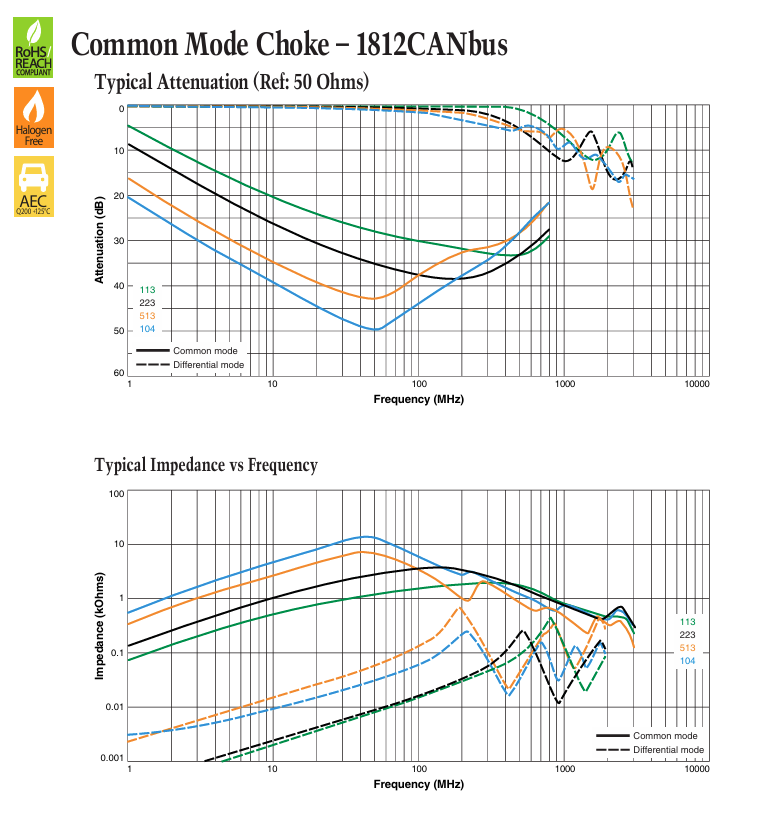

Filters a broad frequency range of common mode noise
50% lower DCR and higher current handling than other CANbus chokes in the market
Designed for common mode noise suppression on CAN or CAN FD
in automotive or general industrial automation applications
Can be used for FlexRay automotive bus system

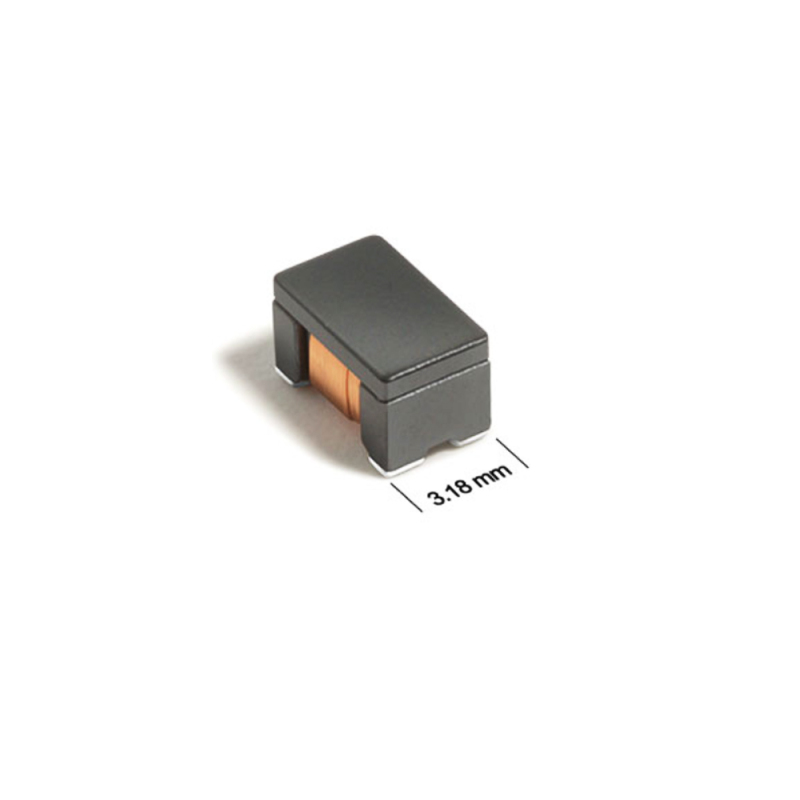

Low profile 1812 footprint: 4.95 × 3.18 × 3.0 mm
AEC-Q200 Grade 1 (−40°C to +125°C)
|
Product Attribute |
Attribute Value |
|
Inductance: |
51 uH |
|
Tolerance: |
30 % |
|
Maximum DC Current: |
260 mA |
|
Maximum DC Resistance: |
800 mOhms |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Package / Case: |
1812 (4532 metric) |
|
Length: |
4.95 mm |
|
Width: |
3.18 mm |
|
Height: |
3 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 kHz |
|
Unit Weight: |
130 mg |
Similar Models：
1812CAN-113NRC 1812CAN-223NRC 1812CAN-513NRC 1812CAN-104NRC
