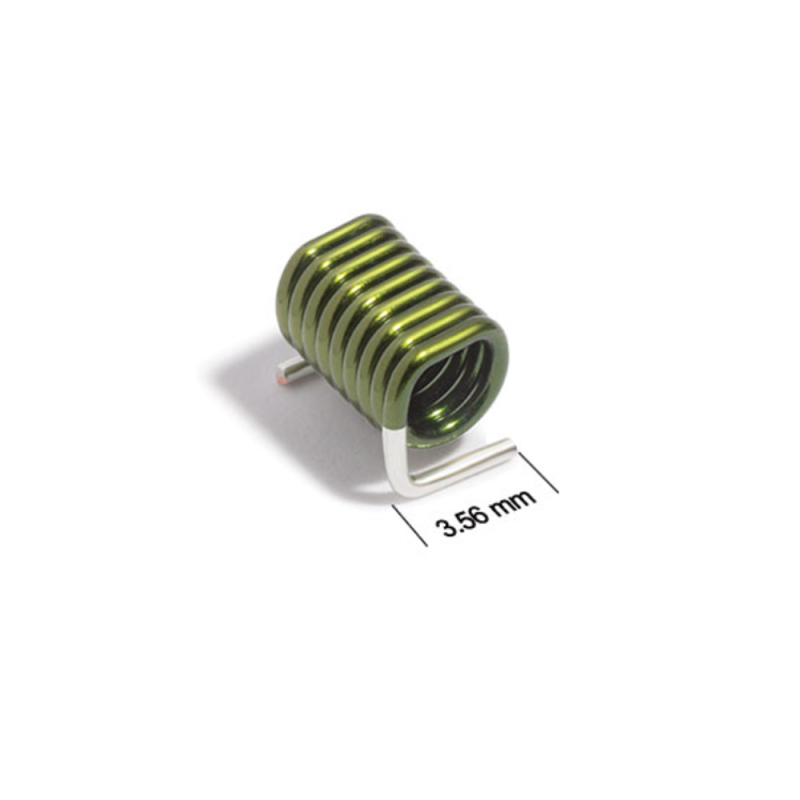

RF Inductors - SMD 82nH Unshld 5% 5.6A 9.4mOhms
Features：

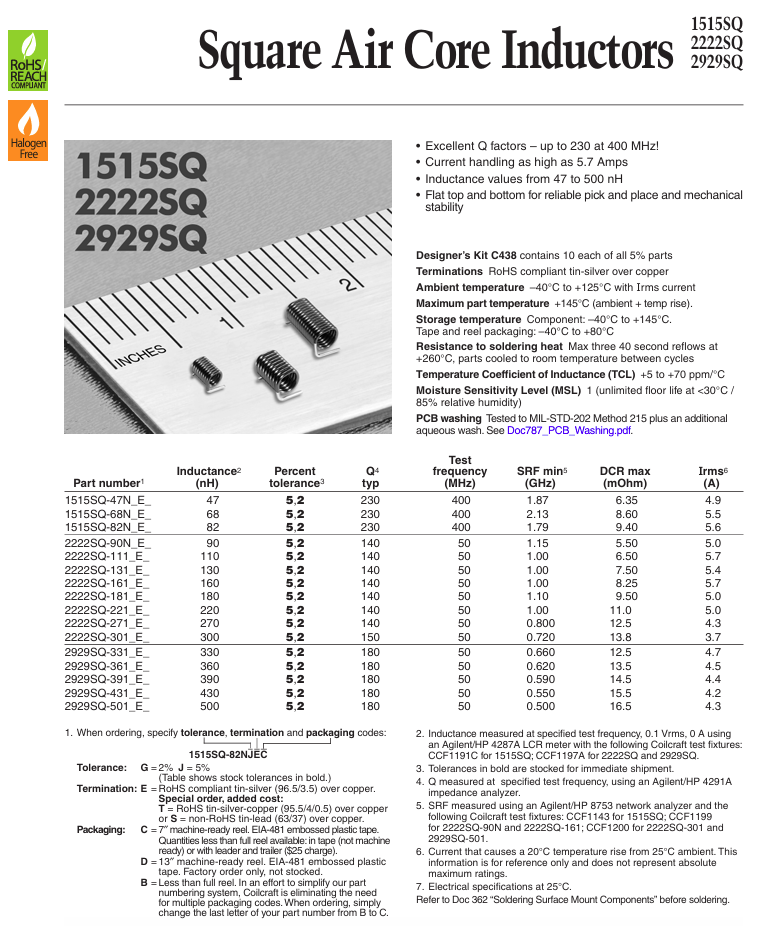

Coilcraft 1515SQ, 2222SQ, 2929SQ Series square air core inductors have extremely high Q factors and very tight inductance tolerances, making them suitable for narrowband RF amplifier matching and tuning applications. As their name implies, air-core inductors do not use a magnetic core, resulting in the high Q and the lowest possible losses for high-frequency applications. High-reliability versions are available for space, military, and other critical applications.

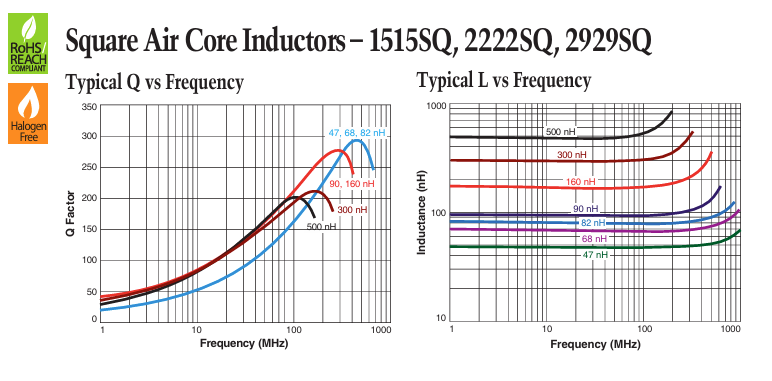

Exceptionally high Q – up to 230 at 400 MHz
Handles up to 5.7 Amps current
Flat top and bottom for reliable pick and place and mechanical stability
Solder coated leads ensure excellent solderability
For lower inductance values, consider the 0806SQ, 0807SQ, 0908SQ, or 1111SQ.
|
Product Attribute |
Attribute Value |
|

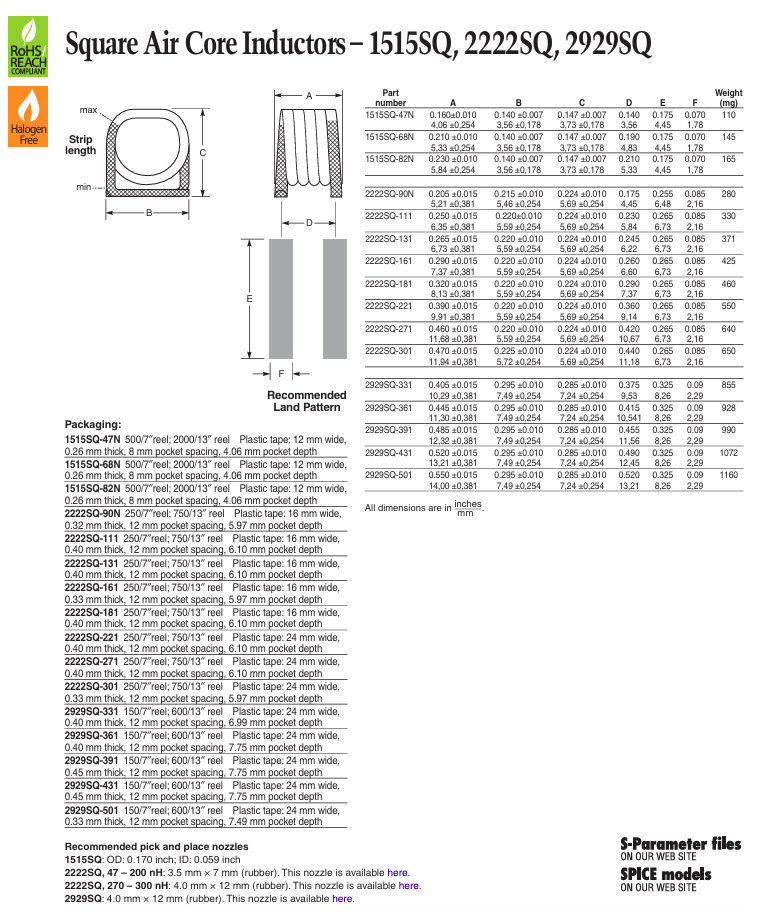

Package / Case: |
3.56 mm x 3.73 mm x 5.84 mm |
|
Shielding: |
Unshielded |
|
Inductance: |
82 nH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
5.6 A |
|
Maximum DC Resistance: |
9.4 mOhms |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Q Minimum: |
230 |
|
Self Resonant Frequency: |
1.79 GHz |
|
Termination: |
Standard |
|
Length: |
5.84 mm |
|
Width: |
3.56 mm |
|
Height: |
3.73 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
400 MHz |
|
Unit Weight: |
145 mg |
Similar Models：
1515SQ-47N_EC 1515SQ-68N_EC 1515SQ-82N_EC 2222SQ-90N_EC 2222SQ-111_EC 2222SQ-131_EC 2222SQ-161_EC 2222SQ-181_EC 2222SQ-221_EC 2222SQ-271_EC 2222SQ-301_EC 2929SQ-331_EC 2929SQ-361_EC 2929SQ-391_EC 2929SQ-431_EC
