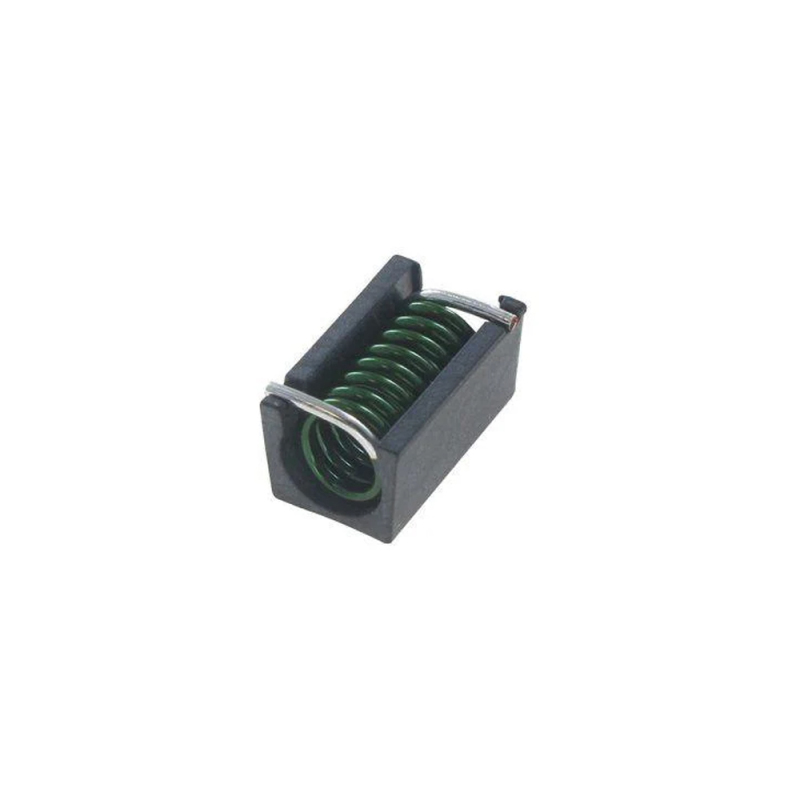

RF Inductors - SMD 422nH Unshld 2% 2.5A 60mOhms

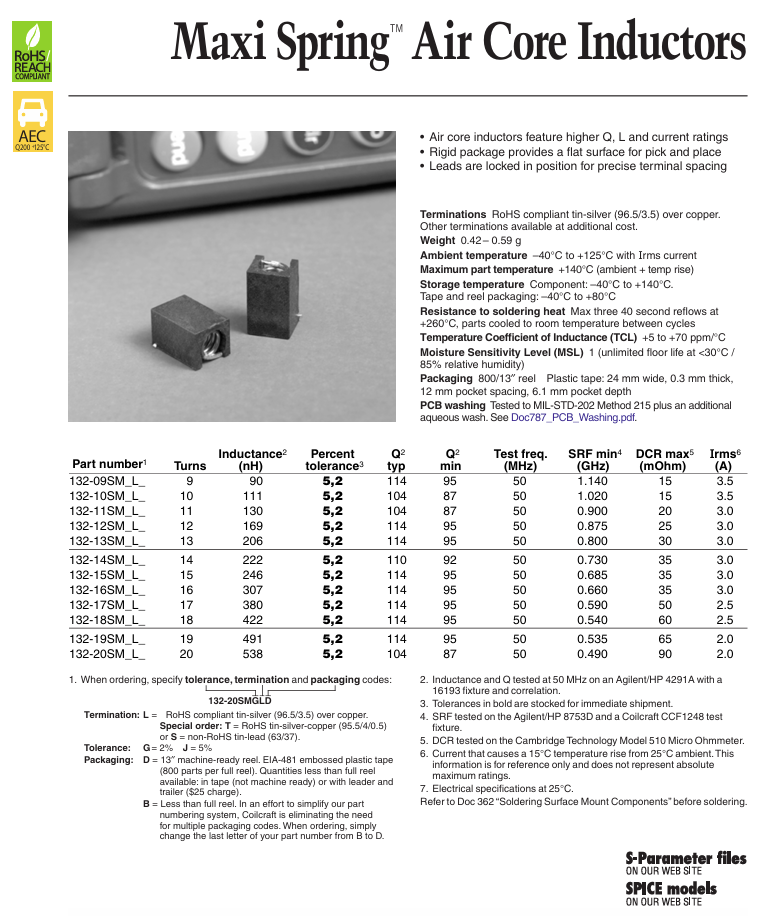

Features：
Our 132-xxSM Series Maxi Spring™ air core inductors have exceptionaly high Q factors and very tight inductance tolerances, making them suitable for narrowband RF amplifier matching and tuning applications. As their name implies, air core inductors do not use a magnetic core, resulting in high Q and the lowest possible losses for high-frequency applications. High-reliability versions are available for space, military, and other critical applications.
Inductance values from 90 nH to 538 nH
Exceptionally high Q even at low frequencies
Handle up to 3.5 Amps current
Tight tolerance (as low as ±2%) can eliminate circuit tuning
Flat top case for mechanical stability and reliable pick and place operations
Solder coated leads ensure reliable soldering
AEC-Q200 Grade 1 (−40°C to +125°C)
|
Product Attribute |
Attribute Value |
|
Package / Case: |
6.6 mm x 5.97 mm x 10.55 mm |
|
Shielding: |
Unshielded |
|
Inductance: |
422 nH |
|
Tolerance: |
2 % |
|
Maximum DC Current: |
2.5 A |
|
Maximum DC Resistance: |
60 mOhms |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Q Minimum: |
95 |
|
Self Resonant Frequency: |
540 MHz |
|
Termination: |
Standard |
|

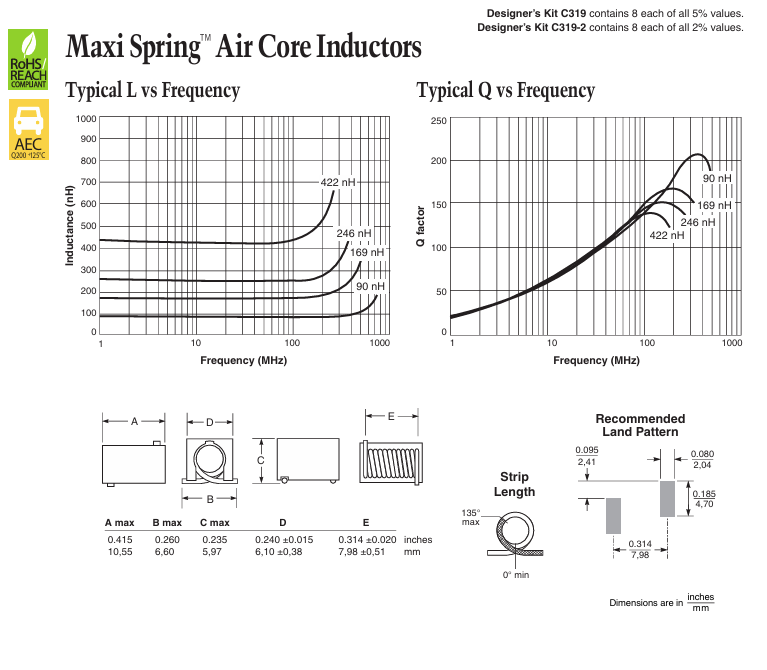

Length: |

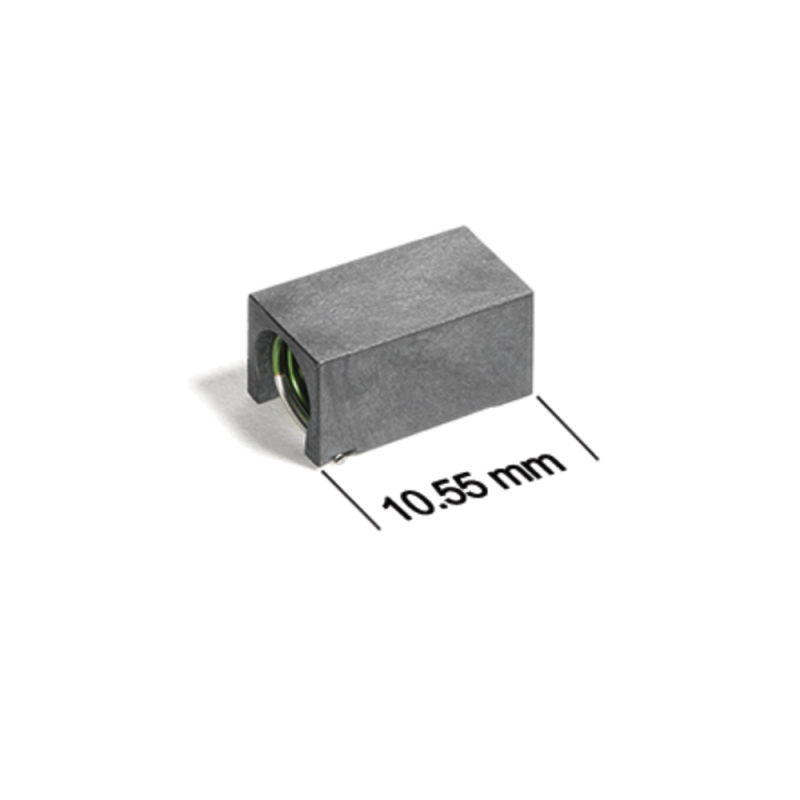

10.55 mm |
|
Width: |
6.6 mm |
|
Height: |
5.97 mm |
|
Core Type: |
Wirewound |
|
Mounting Style: |
PCB Mount |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
50 MHz |
|
Unit Weight: |
5 g |
