| Brand | Coilcraft |
| Date Code | 26+ |
| Packing | Tray |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

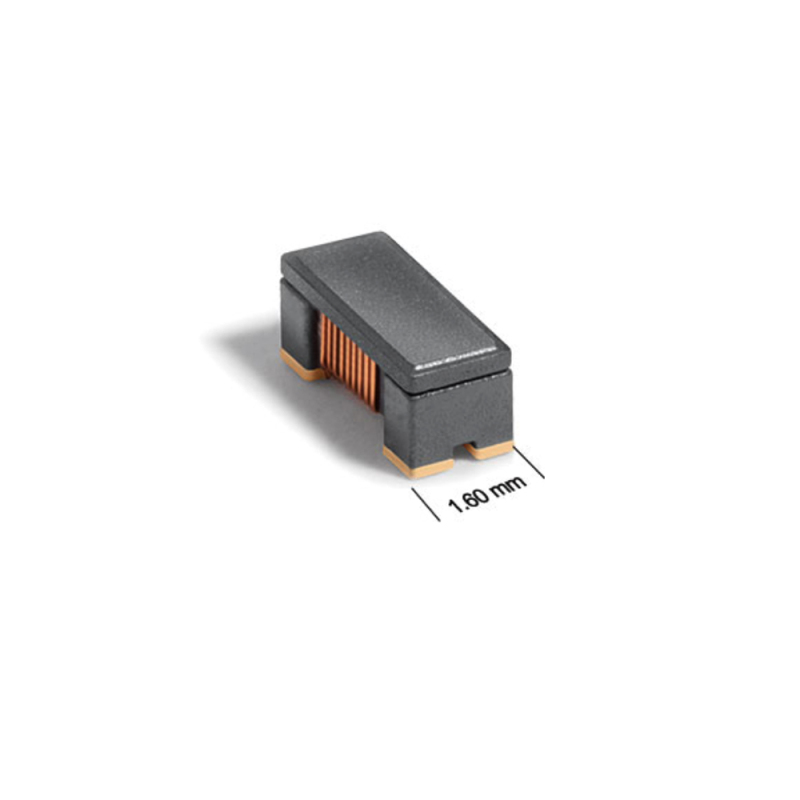

Common Mode Chokes / Filters For Hi Speed Signal 623nH DCR=.44Ohms
Features：

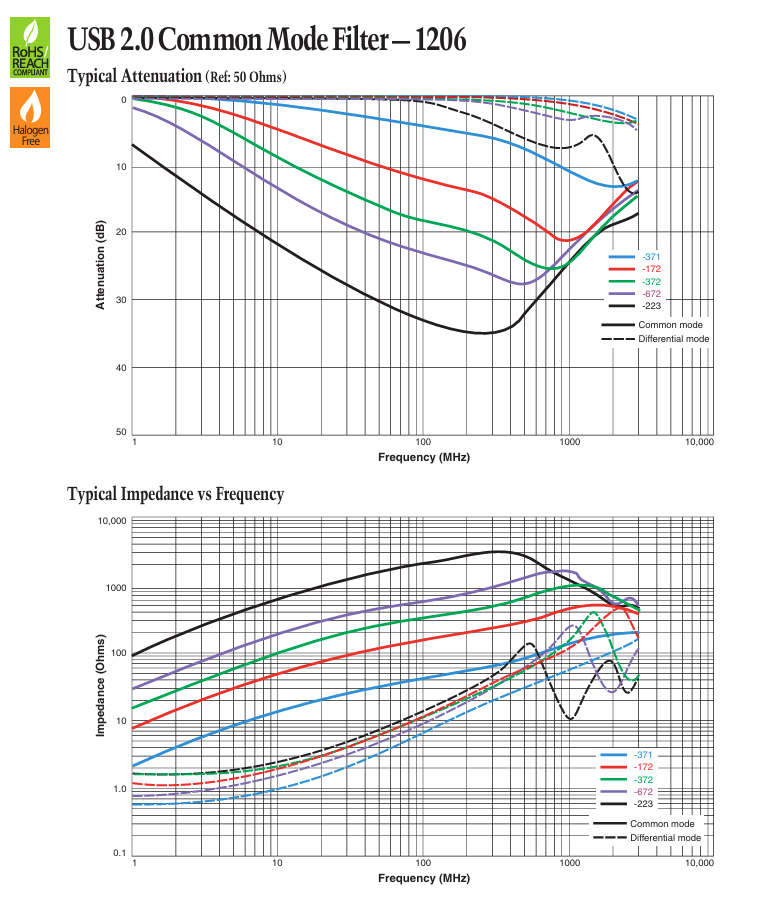

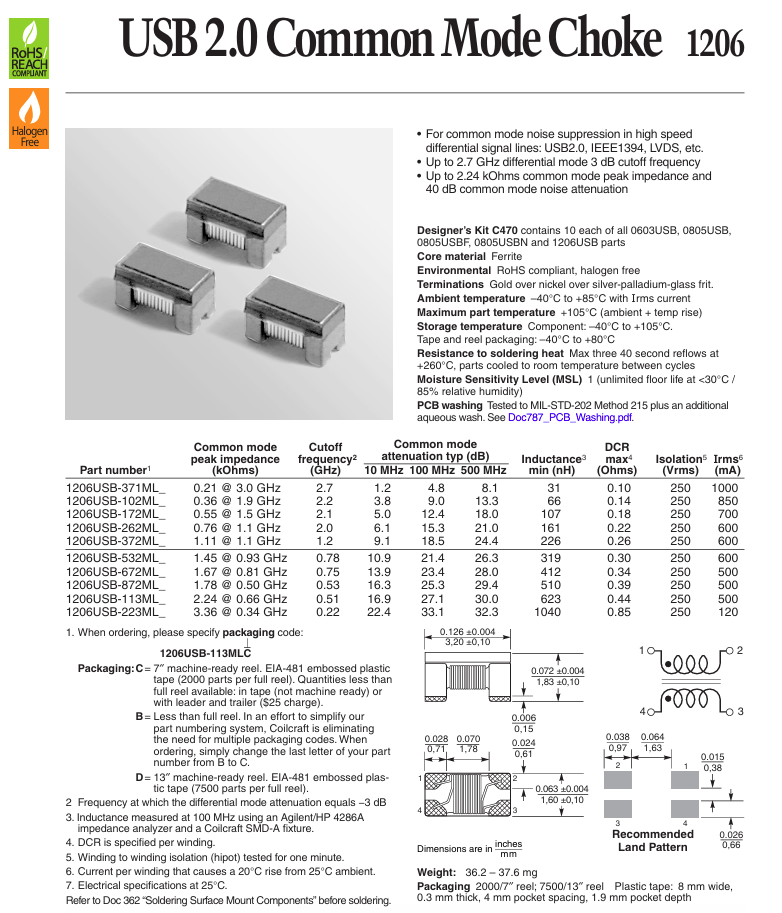

Our 1206USB Series was designed for common mode noise suppression in high-speed differential signal lines (USB2.0, IEEE1394, and LVDS) for up to 2.7 GHz differential mode 3 dB cutoff frequency. It provides up to 2.24 kOhms common mode peak impedance and 33 dB common mode noise attenuation.
For common mode noise suppression in high-speed differential signal lines: USB2.0, IEEE1394, LVDS, etc.
For USB 3.x applications, consider our 0603USB, 0805USBF or 0805USBN series
Up to 2.7 GHz differential mode 3 dB cutoff frequency
Up to 2.24 kOhms common mode peak impedance and 33 dB common mode noise attenuation
|
Product Attribute |
Attribute Value |
|
Inductance: |
623 nH |
|
Impedance: |
2.24 kOhms |
|
Maximum DC Current: |
500 mA |
|
Maximum DC Resistance: |
440 mOhms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Length: |
3.2 mm |
|
Width: |
1.6 mm |
|
Height: |
1.83 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Unit Weight: |
37.600 mg |
Similar Models：
1206USB-371MLC 1206USB-102MLC 1206USB-172MLC 1206USB-262MLC 1206USB-372MLC 1206USB-532MLC 1206USB-672MLC 1206USB-872MLC 1206USB-113MLC 1206USB-223MLC
