| Brand | Coilcraft |
| Date Code | 24+/25+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

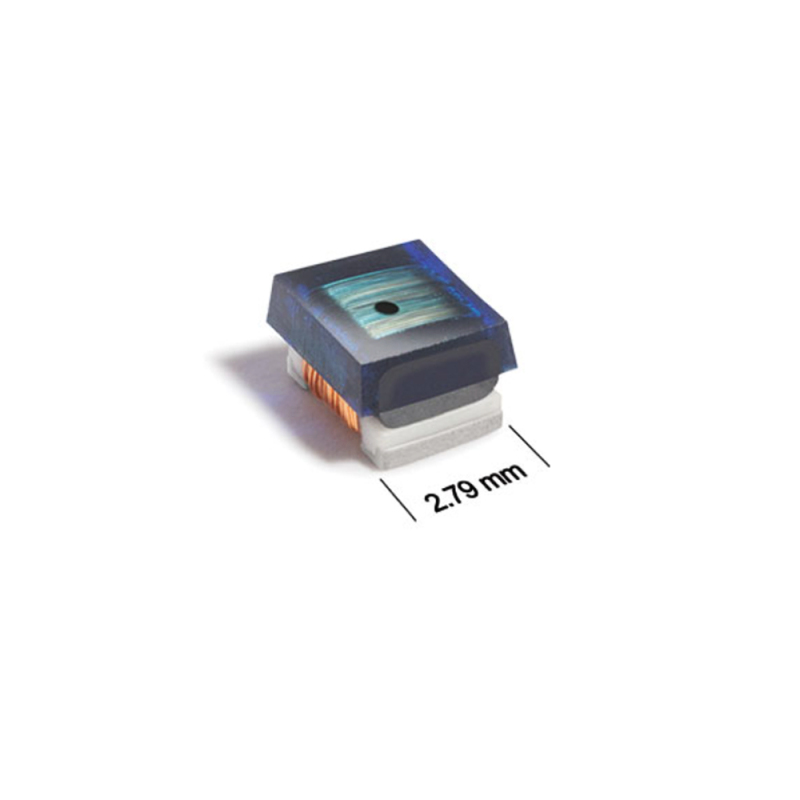

RF Inductors - SMD 1008 1.2uH Unshld 5% 650mA 680mOhms AECQ
Features：

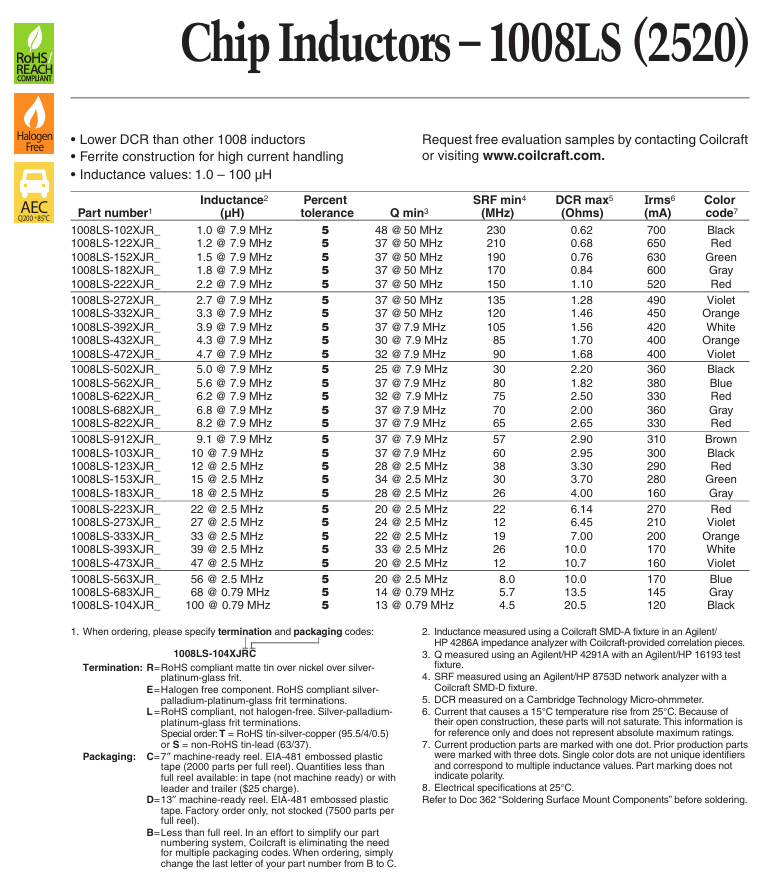

Our 1008LS Series wirewound chip inductors have a ferrite-ceramic core construction that gives higher current handling and lower DCR in an 1008 (2520) chip size. Inductance values range from 1 uH to 100 uH, with a ±5% for all values in the series.
Inductance values from 1.0 µH to 100 µH (5% tolerance)
Higher Q and lower DCR than our 1008CS/HS Series
Ferrite construction for higher current carrying capacity
Defense Supply Center CID A-A-59698
AEC-Q200 Grade 3 (−40°C to +85°C)
|
Product Attribute |
Attribute Value |
|
Shielding: |
Unshielded |
|
Inductance: |
1.2 uH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
650 mA |
|
Maximum DC Resistance: |
680 mOhms |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 85 C |
|

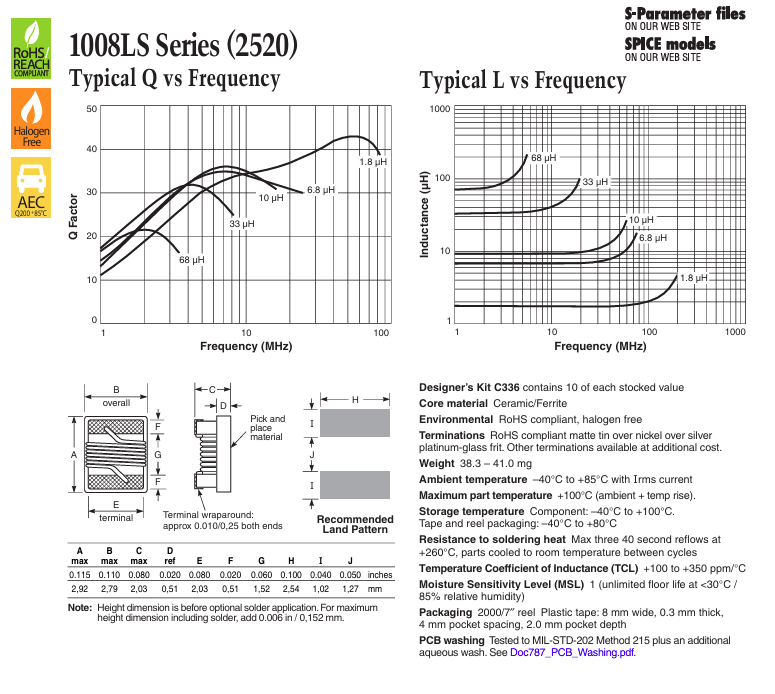

Q Minimum: |
37 |
|
Self Resonant Frequency: |
210 MHz |
|
Termination: |
Standard |
|
Length: |
2.92 mm |
|
Width: |
2.79 mm |
|
Height: |
2.03 mm |
|
Mounting Style: |
PCB Mount |
|
Product: |
RF Inductors |
|
Product Type: |
RF Inductors - Leaded |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
7.9 MHz |
|
Unit Weight: |
100 mg |
