| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

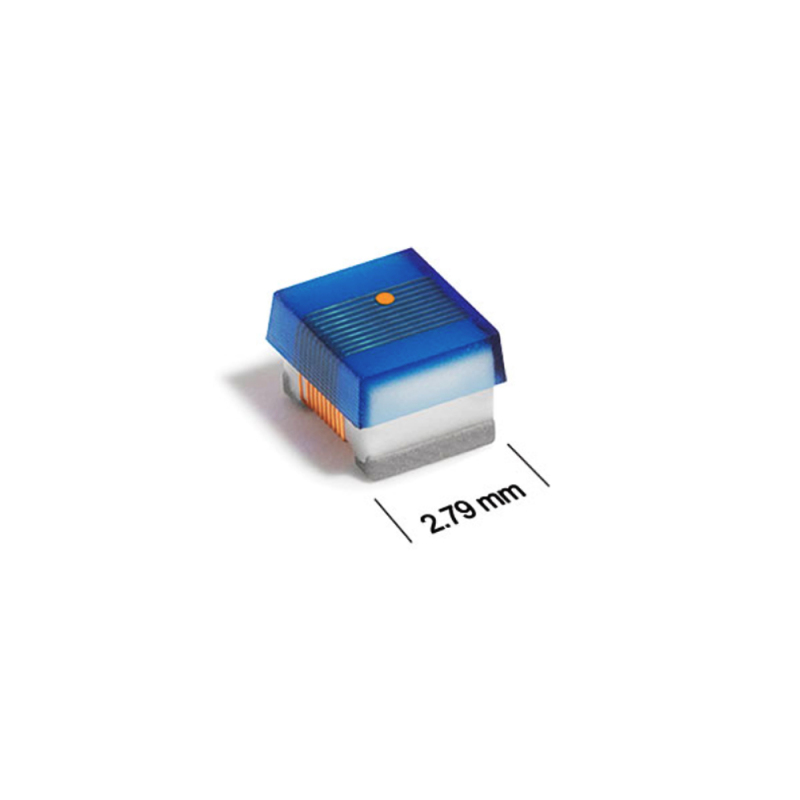

RF Inductors - SMD RF chip inductor
Features：
Our 1008CS is the original 1008-size wirewound chip inductor series and features high Q factors vs non-wirewound inductors of the same size. 1008CS Series is available in a wide range of values and high SRF – up to 4.1 GHz.
Inductance values from 10 nH to 8200 nH (tolerances as low as 1%)
Exceptionally high Q compared to non-wirewound inductors, especially at high frequencies
Ceramic construction for highest possible self resonance (as high as 4100 MHz)
Excellent current carrying capacity for their size
Defense Supply Center CID A-A-59697
AEC-Q200 Grade 1 (−40°C to +125°C)
