Common Mode Chokes / Filters For Hi Speed Signal 14nH DCR=.11Ohms
Features：

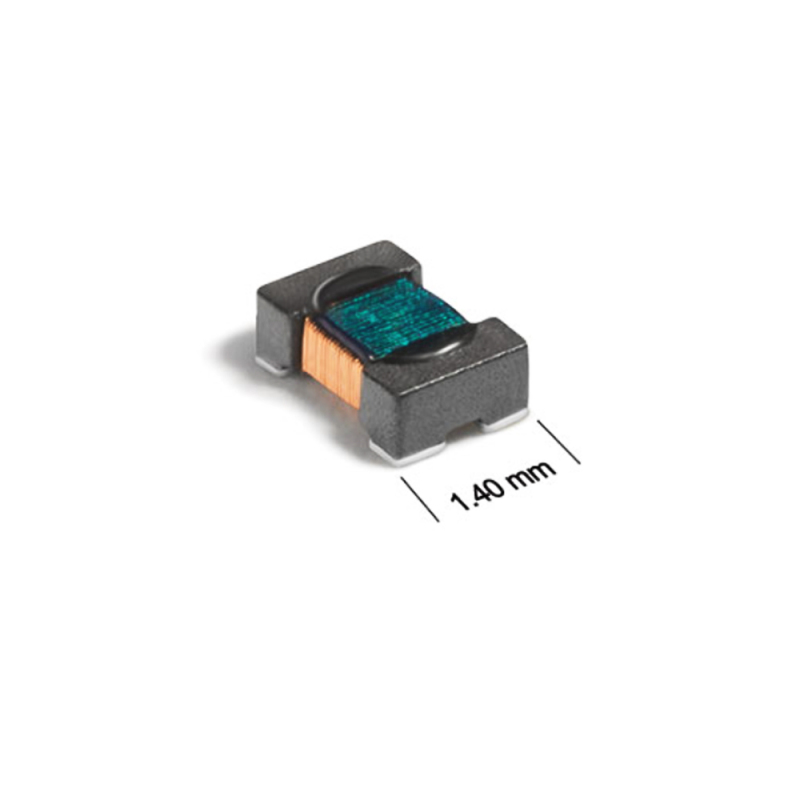

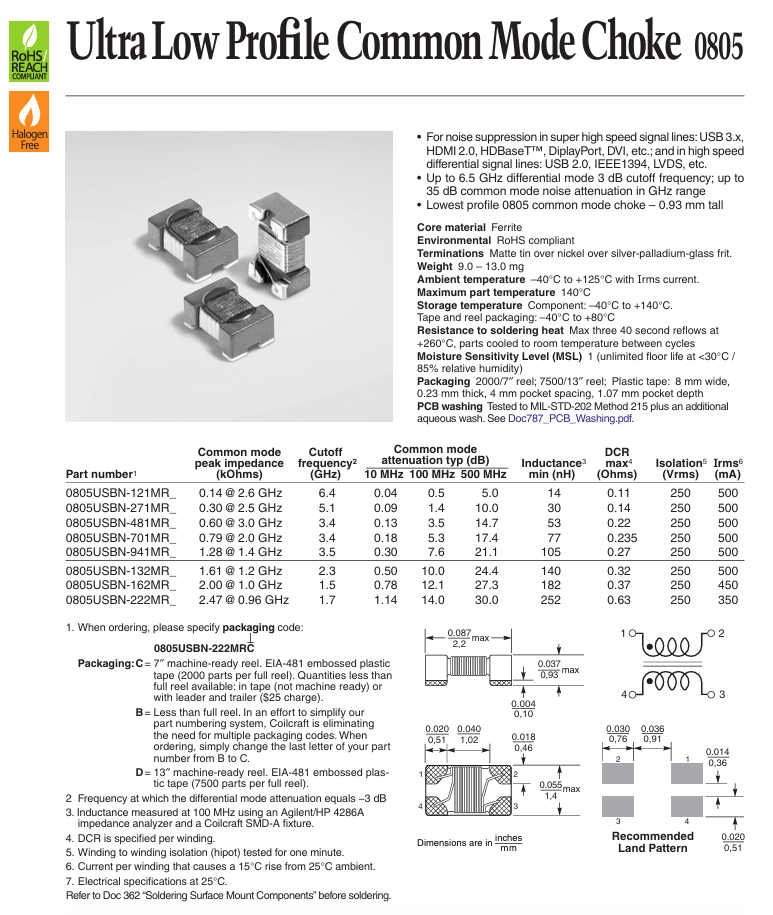

Our 0805USBN Series low-profile common mode chokes are great for noise suppression in ultra-high-speed signal lines (USB 3.x, HDMI 2.0, HDBaseT™, DisplayPort, DVI, etc.) and in high-speed differential signal lines (USB 2.0, IEEE1394, and LVDS). They are also suitable for USB-type C specification 1.0 and provide up to

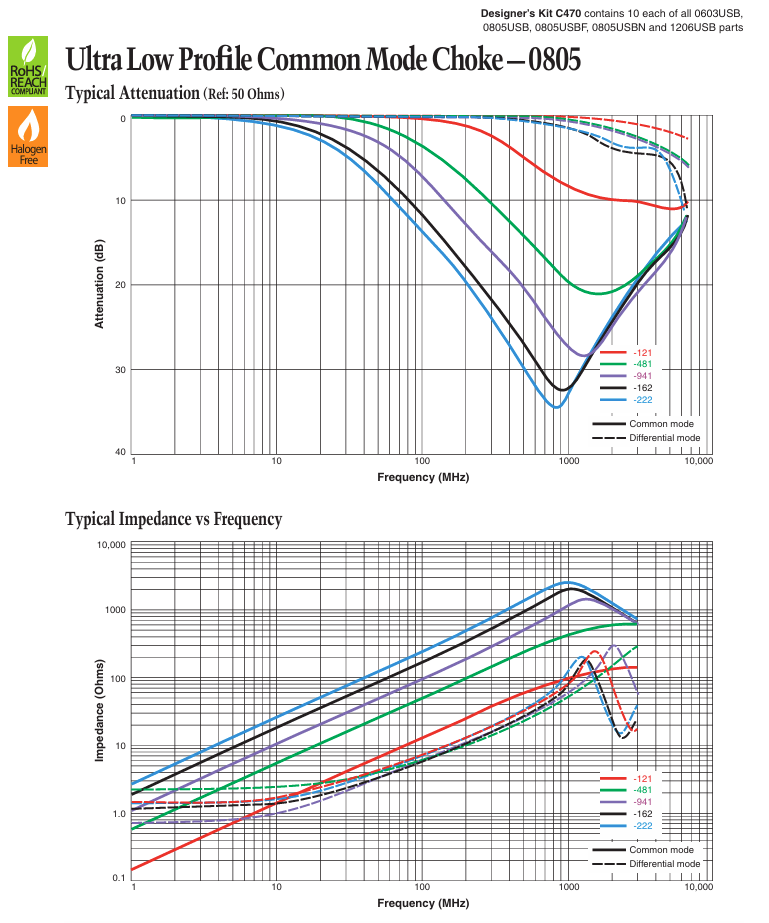

6.5 GHz differential mode 3 dB cutoff frequency and up to 30 dB common mode noise attenuation in the GHz range.
For noise suppression in super-high-speed signal lines (USB 3.x, HDMI 2.0, HDBaseT™, DisplayPort, DVI, etc.) and in high-speed differential signal lines (USB 2.0, IEEE1394, and LVDS). Also suitable for USB-type C specification 1.0.
Up to 6.5 GHz differential mode 3 dB cutoff frequency
Up to 35 dB common mode noise attenuation in GHz range
Compact, low-profile (<1.0 mm) package
Designed for high temperature applications up to +125°C
|
Product Attribute |
Attribute Value |
|
Inductance: |
14 nH |
|
Impedance: |
140 Ohms |
|
Maximum DC Current: |
500 mA |
|
Maximum DC Resistance: |
110 mOhms |
|
Minimum Operating Temperature: |
- 40°C |
|
Maximum Operating Temperature: |
+ 125°C |
|
Package / Case: |
0805 (2012 metric) |
|
Length: |
2.2 mm |
|
Width: |
1.4 mm |
|
Height: |
0.93 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
100 MHz |
|
Unit Weight: |
13 mg |
Similar Models：
0805USBN-121MRC 0805USBN-271MRC 0805USBN-481MRC 0805USBN-701MRC 0805USBN-941MRC 0805USBN-132MRC 0805USBN-162MRC 0805USBN-222MRC
