| Brand | Coilcraft |
| Date Code | 25+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

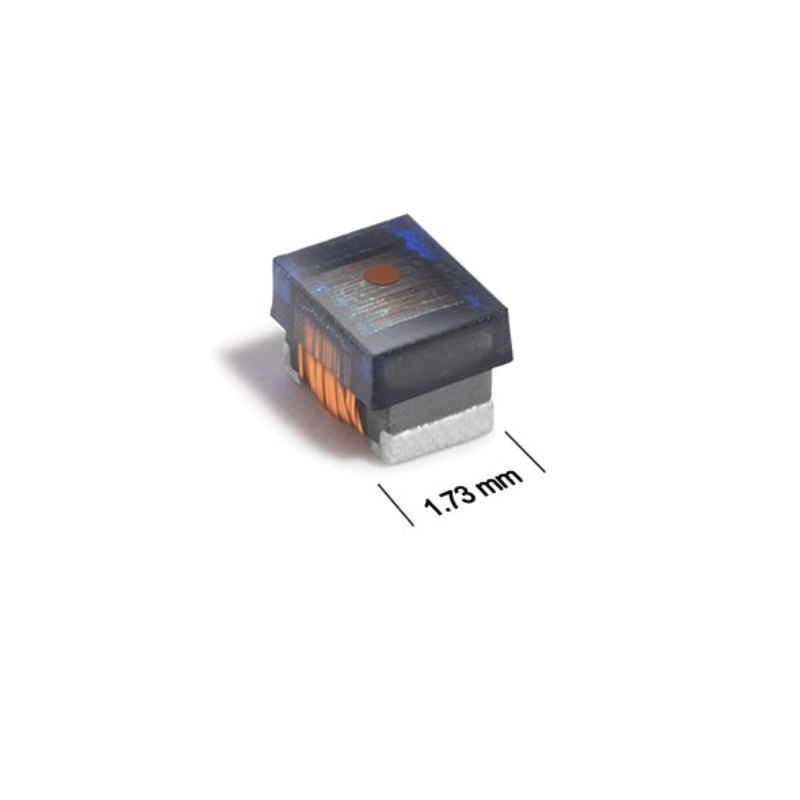

RF Inductors - SMD 0805 1000nH Unshld 5% 650mA 390mOhms
Features：

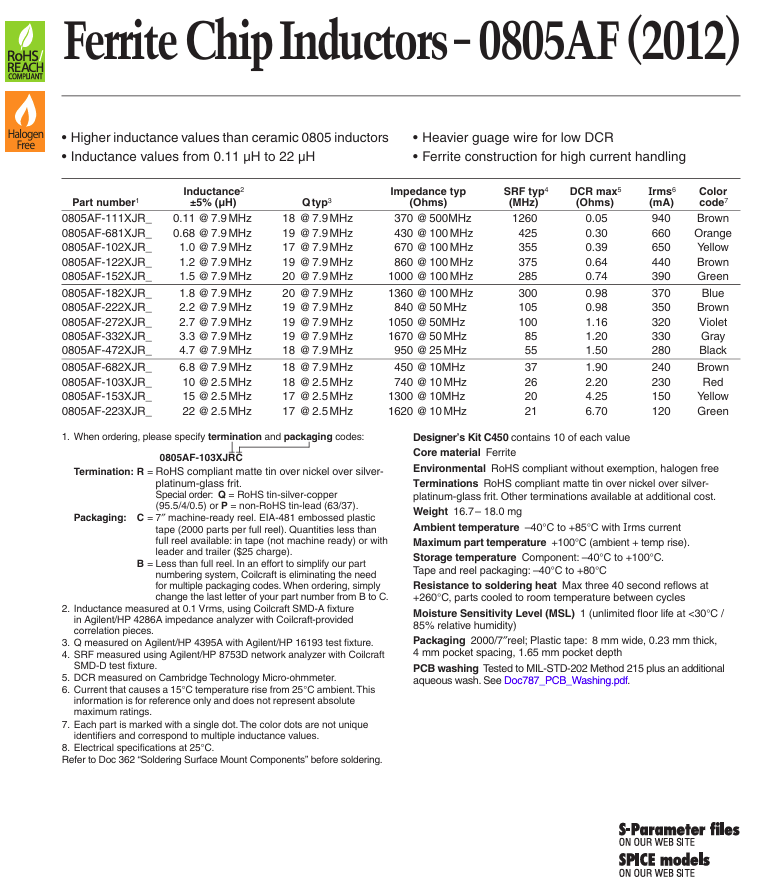

Our 0805AF Series wirewound inductors feature ferrite core construction and heavy gauge wire for high current handling and broadband filtering. This series covers a wide range of values from 11 nH to 22 uH and comes with a tight ±5% standard tolerance on all values.
Higher inductance values than other 0805 inductors
Ferrite construction and heavy gauge wire for high current handling
5% inductance tolerance for all values
Inductance values from 0.11 µH to 22 µH
|

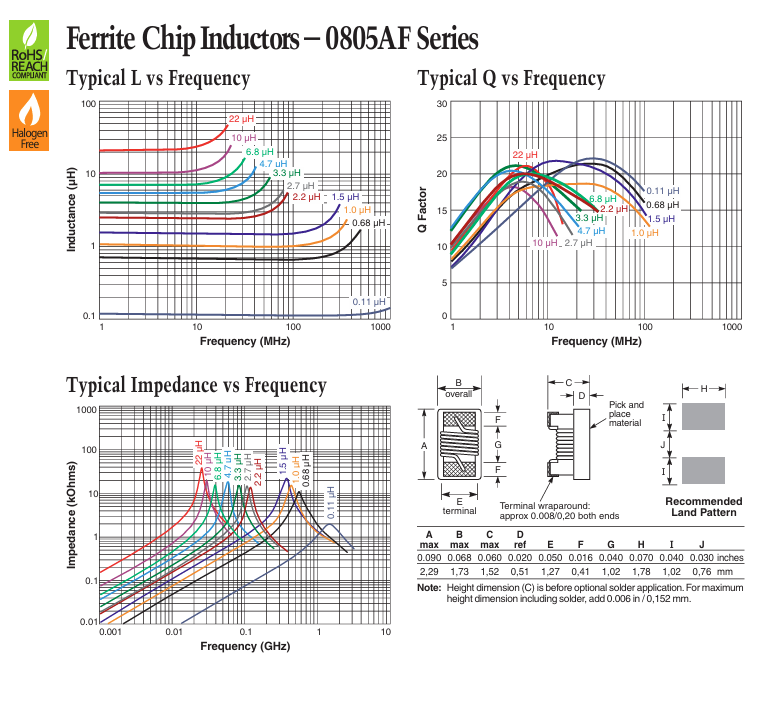

Product Attribute |
Attribute Value |
|
Inductance: |
1 uH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
650 mA |
|
Maximum DC Resistance: |
390 mOhms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Q Minimum: |
17 |
|
Self Resonant Frequency: |
355 MHz |
|
Termination: |
Standard |
|
Length: |
2.29 mm |
|
Width: |
1.73 mm |
|
Height: |
1.52 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
7.9 MHz |
|
Unit Weight: |
10 mg |
Similar Models：
0805AF-111XJRC 0805AF-681XJRC 0805AF-102XJRC 0805AF-122XJRC 0805AF-152XJRC 0805AF-182XJRC 0805AF-222XJRC 0805AF-272XJRC 0805AF-332XJRC 0805AF-472XJRC 0805AF-682XJRC 0805AF-103XJRC 0805AF-153XJRC 0805AF-223XJRC
