| Brand | Coilcraft |
| Date Code | 24+/25+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

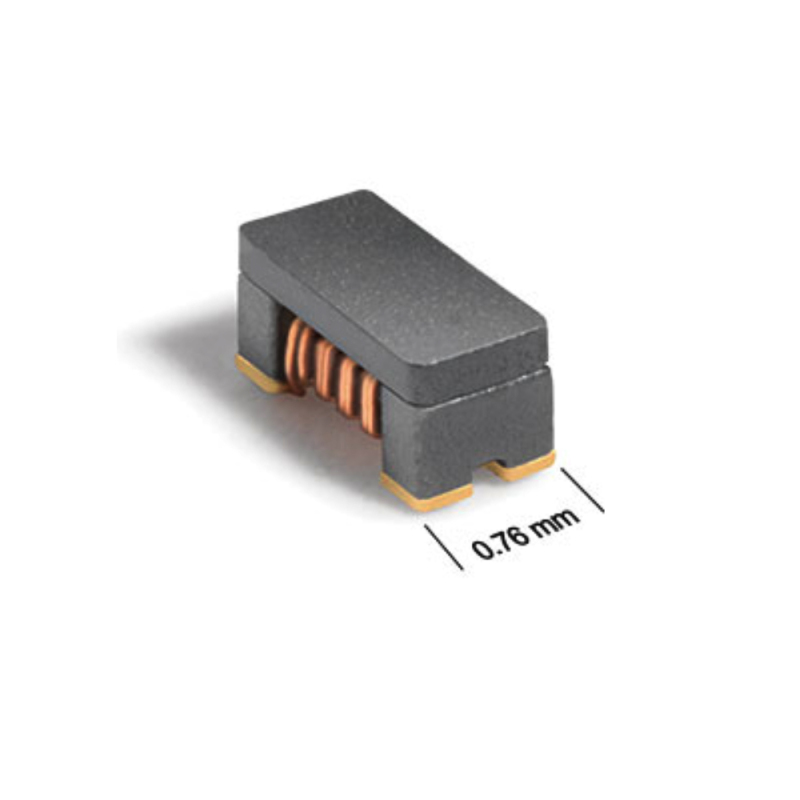

Common Mode Chokes / Filters For Hi Speed Signal 98nH DCR=.174Ohms
Features：

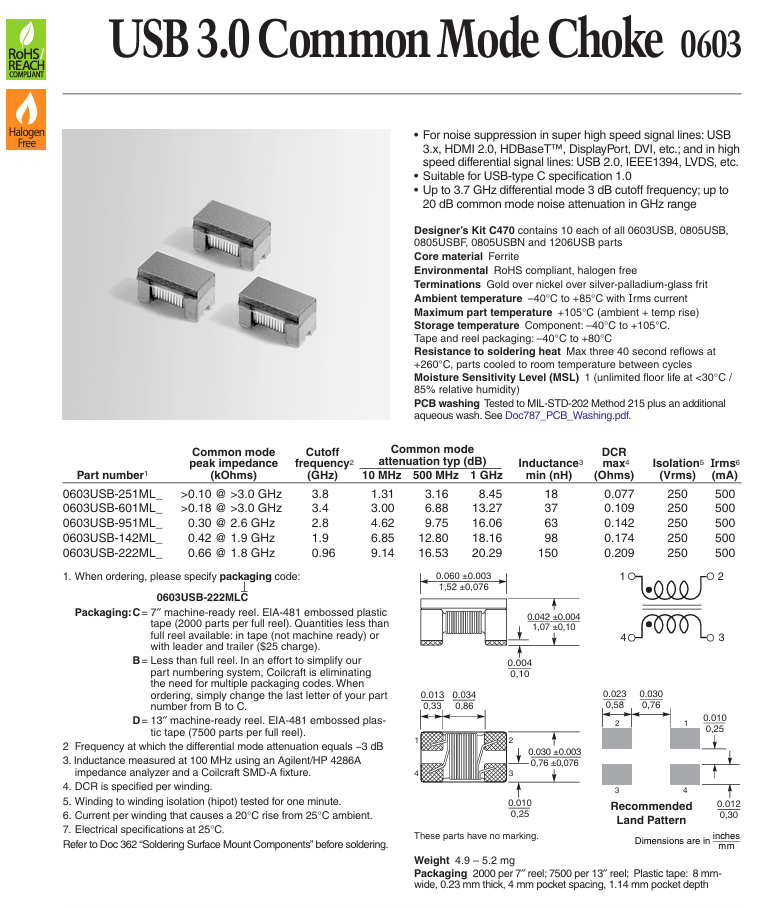

Our 0603USB Series common mode chokes eliminate virtually all common mode noise in USB 3.1 Gen 1, HDMI, IEEE 1394 and LVDS applications and support data rates up to 4.8 Gbit/s.
Eliminates virtually all common mode noise
Optimized for USB 3.1 Gen 1, HDMI, IEEE 1394 and LVDS applications
Supports data rates up to 4.8 Gbit/s.

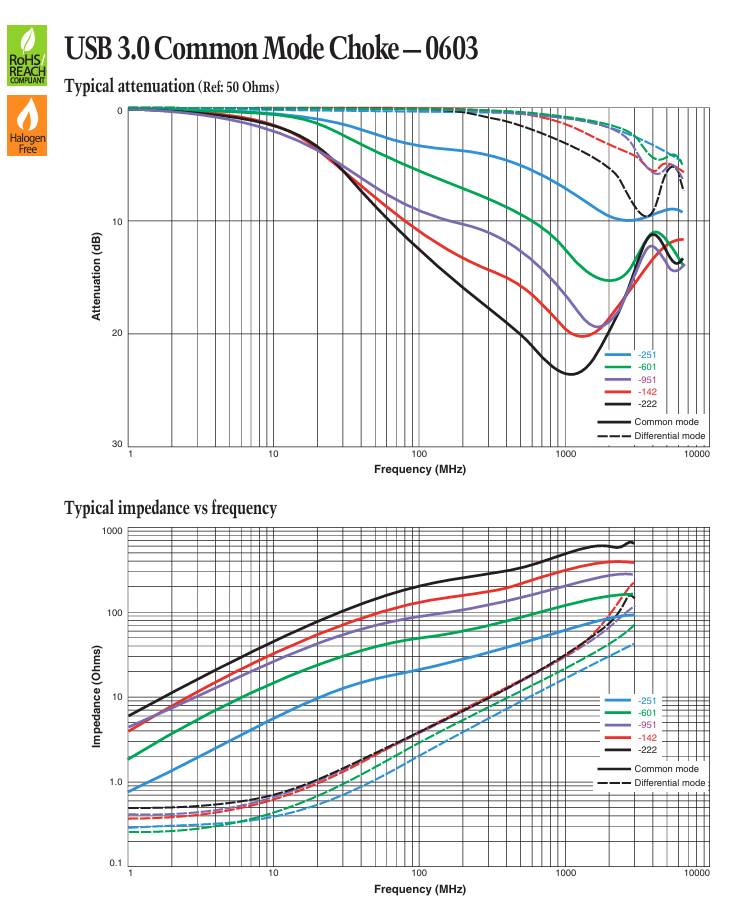

Up to 3.7 GHz differential mode 3 dB cutoff frequency
Up to 0.7 kOhms common mode peak impedance and 20 dB common mode noise attenuation
|
Product Attribute |
Attribute Value |
|
Inductance: |
98 nH |
|
Impedance: |
420 Ohms |
|
Maximum DC Current: |
500 mA |
|
Maximum DC Resistance: |
174 mOhms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Length: |
1.52 mm |
|
Width: |
0.76 mm |
|
Height: |
1.07 mm |
|
Product Type: |
Common Mode Chokes |
|
Subcategory: |
Inductors, Chokes & Coils |
