| Brand | Coilcraft |
| Date Code | 23+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

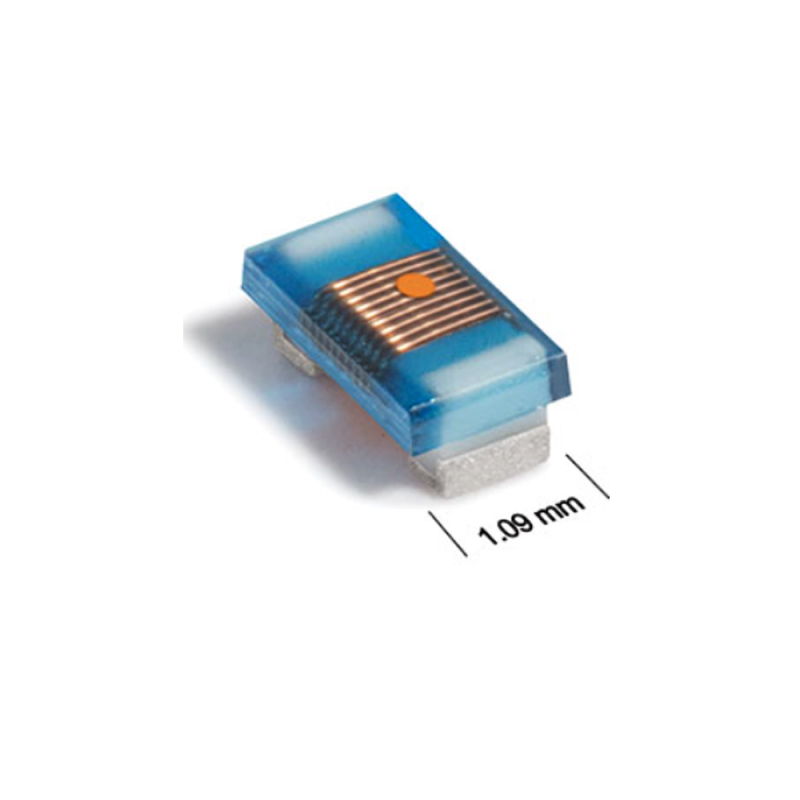

RF Inductors - SMD 0603 51nH Unshld 2% 660mA 280mOhms
Features：

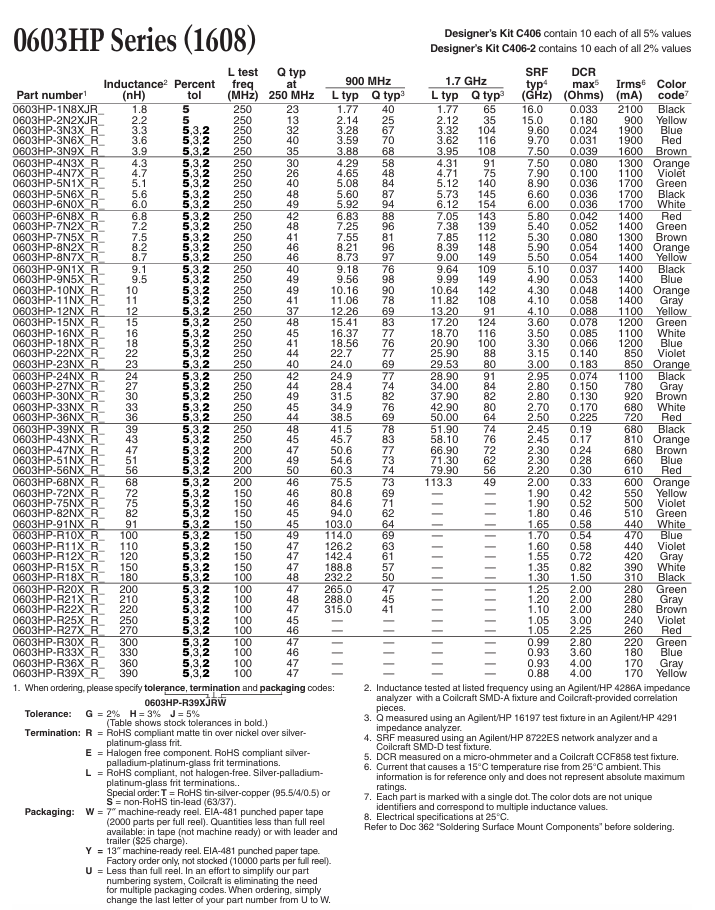

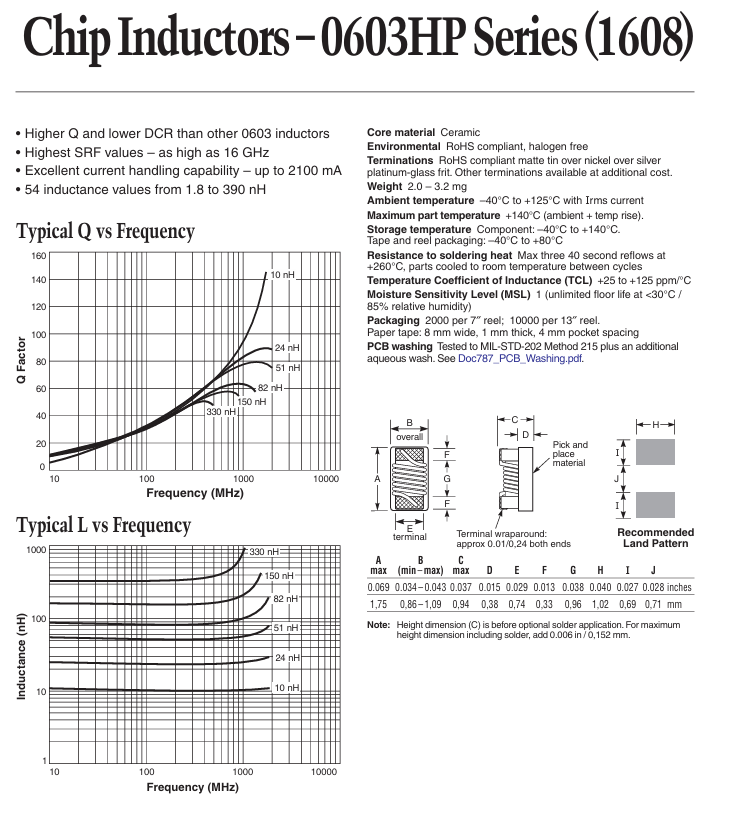

0603HP Series ceramic chip inductors provide a wide range of inductance values with exceptionally high Q – up to 154 at 1.7 GHz. They also feature SRF values as high as 16 GHz and excellent current handling – up to 2100 mA.
Exceptionally high Q – up to 154 at 1.7 GHz!
Inductance values from 1.8 to 390 nH
SRF values as high as 16 GHz
Excellent current handling capability – up to 2100 mA
|
Product Attribute |
Attribute Value |
|
Product Category: |
RF Inductors - SMD |
|
Inductance: |
51 nH |
|
Tolerance: |
2 % |
|
Maximum DC Current: |
660 mA |
|
Maximum DC Resistance: |
280 mOhms |
|
Minimum Operating Temperature: |
- 40 C |
|
Maximum Operating Temperature: |
+ 125 C |
|
Q Minimum: |
62 |
|
Self Resonant Frequency: |
2.3 GHz |
|
Termination: |
Standard |
|
Length: |
1.75 mm |
|
Width: |
1.09 mm |
|
Height: |
0.94 mm |
|
Core Material: |
Ceramic |
|
Packaging: |
MouseReel |
|
Application: |
RF |
|
Case Code - in: |
0603 |
|
Case Code - mm: |
1608 |
|
Mounting Style: |
PCB Mount |
|
Product: |
RF Inductors |
|
Product Type: |
RF Inductors - Leaded |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Termination Style: |
SMD/SMT |
|
Test Frequency: |
200 MHz |
|
Unit Weight: |
3.200 mg |
