| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |
RF Inductors - SMD RF chip inductor
Features：

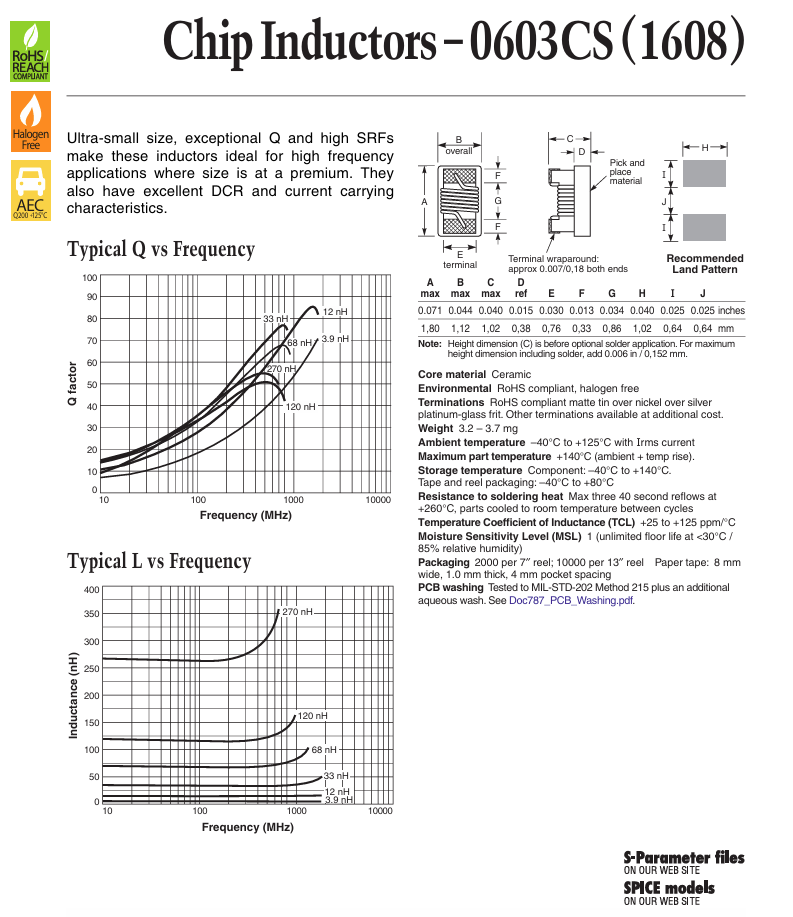

Our 0603CS Series wirewound ceramic chip inductors were the first of their size. They feature very high Q factors – up to 89 at 1.7 GHz – and self-resonant frequencies up to 12.5 GHz. Tolerances as tight as 2% for most values are available and stocked.
Inductance values from 1.6 to 390 nH
Very high Q – up to 89 at 1.7 GHz!
Very high self-resonant frequencies – up to 12.5 GHz
AEC-Q200 Grade 1 (−40°C to +125°C)
Defense Supply Center CID A-A-59416
|
Frequency - Self Resonant |
780MHz |
|
Operating Temperature |
-40°C ~ 125°C |
|
Inductance Frequency - Test |
100 MHz |
|
Size / Dimension |

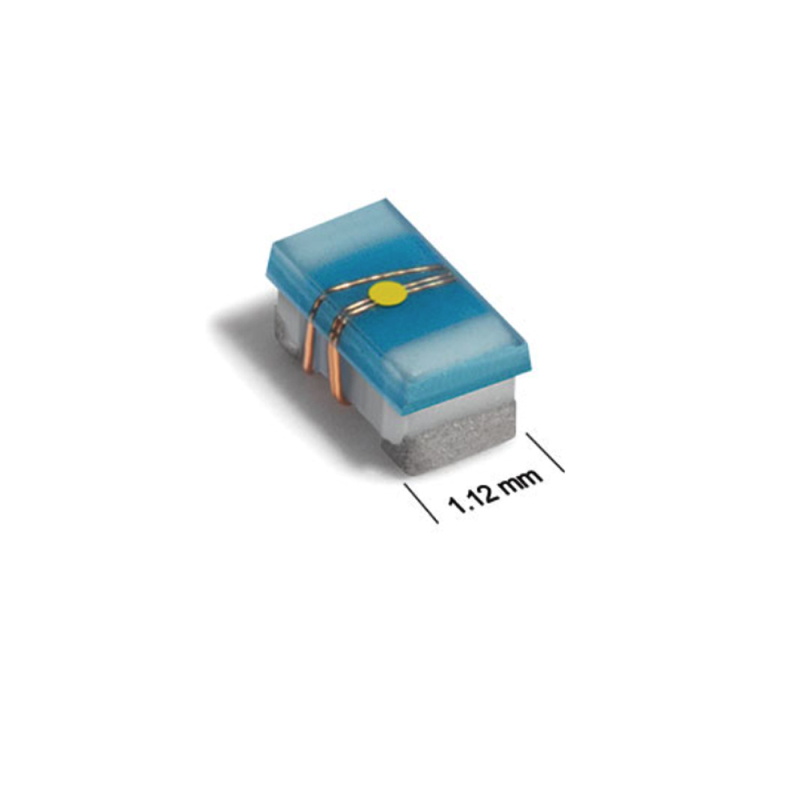

0.071" L x 0.044" W (1.80mm x 1.12mm) |
|
Height - Seated (Max) |
0.040" (1.02mm) |
Similar Models：

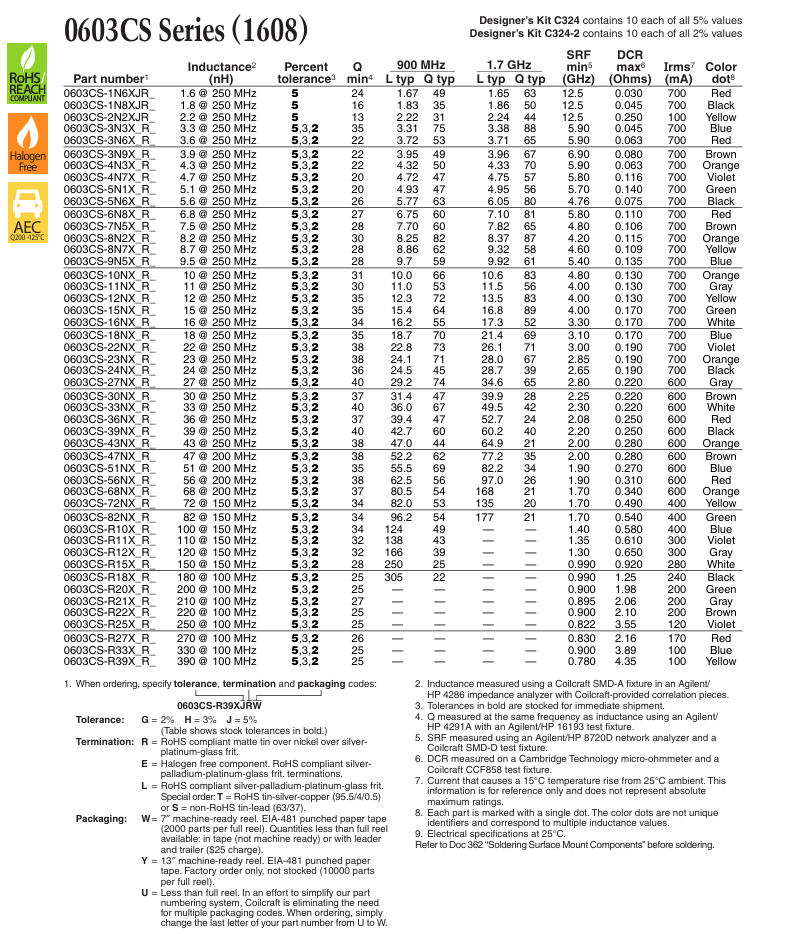

0603CS-1N6XJRW 0603CS-1N8XJRW 0603CS-2N2XJRW 0603CS-3N3X_RW 0603CS-3N6X_RW 0603CS-3N9X_RW 0603CS-4N3X_RW 0603CS-4N7X_RW 0603CS-5N1X_RW 0603CS-5N6X_RW 0603CS-6N8X_RW 0603CS-7N5X_RW 0603CS-8N2X_RW 0603CS-8N7X_RW 0603CS-9N5X_RW 0603CS-10NX_RW 0603CS-11NX_RW 0603CS-12NX_RW 0603CS-15NX_RW 0603CS-16NX_RW 0603CS-18NX_RW 0603CS-22NX_RW 0603CS-23NX_RW 0603CS-24NX_RW 0603CS-27NX_RW 0603CS-30NX_RW 0603CS-33NX_RW 0603CS-36NX_RW 0603CS-39NX_RW 0603CS-43NX_RW 0603CS-47NX_RW 0603CS-51NX_RW 0603CS-56NX_RW 0603CS-68NX_RW 0603CS-72NX_RW 0603CS-82NX_RW 0603CS-R10X_RW 0603CS-R11X_RW 0603CS-R12X_RW 0603CS-R15X_RW 0603CS- 18X_RW 0603CS-R20X_RW 0603CS-R21X_RW 0603CS-R22X_RW 0603CS-R25X_RW 0603CS-R27X_RW 0603CS-R33X_RW 0603CS-R39X_RW
