| Brand | Coilcraft |
| Date Code | 23+ |

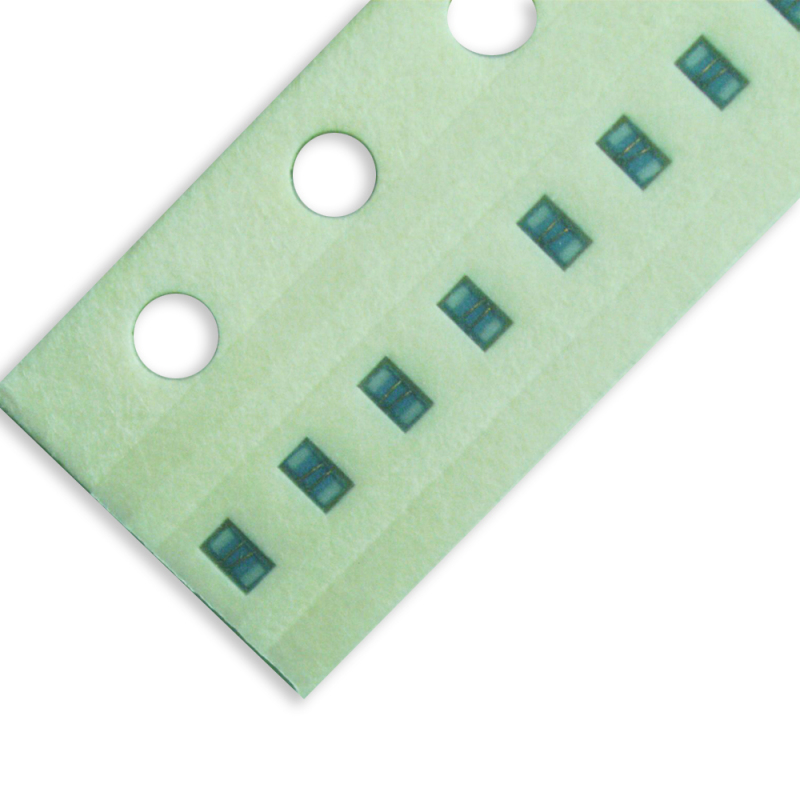

| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |
Features：

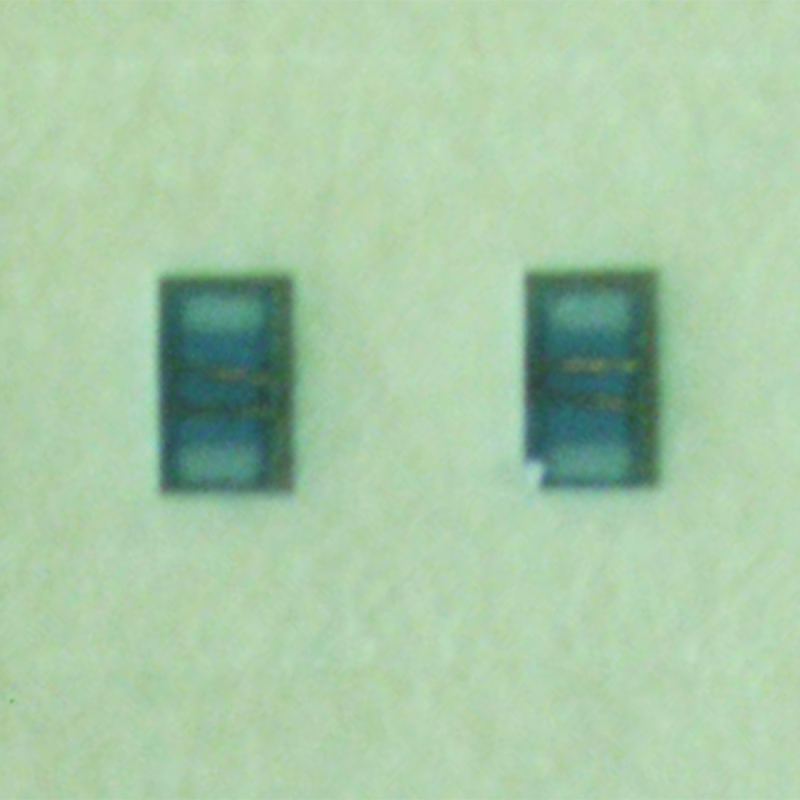

Our 0402HP Series includes a wide range of inductance values from 1.0 to 220 nH. It has lower DCR and higher Q than our original 0402 series and has high self-resonant frequencies – as high as 16 GHz. For even lower DCR and higher Q, consider the 0402DC Series.
Inductance values from 1.0 to 220 nH
Exceptional current handling capability – up to 2300 mA
Very high Q – up to 105 at 1.7 GHz!
SRF values as high as 16 GHz
Similar Models：
0402HP-1N0XJRW 0402HP-2N0XJRW 0402HP-2N2XJRW 0402HP-2N4X_RW 0402HP-2N7X_RW 0402HP-3N3X_RW 0402HP-3N6X_RW 0402HP-3N9X_RW 0402HP-4N3X_RW 0402HP-4N7X_RW 0402HP-5N1X_RW 0402HP-5N6X_RW 0402HP-6N2X_RW 0402HP-6N8X_RW 0402HP-7N5X_RW 0402HP-8N2X_RW 0402HP-8N7X_RW 0402HP-9N0X_RW 0402HP-9N5X_RW 0402HP-10NX_RW 0402HP-11NX_RW 0402HP-12NX_RW 0402HP-13NX_RW 0402HP-15NX_RW 0402HP-16NX_RW 0402HP-17NX_RW 0402HP-18NX_RW 0402HP-19NX_RW 0402HP-20NX_RW 0402HP-21NX_RW 0402HP-22NX_RW 0402HP-23NX_RW 0402HP-24NX_RW 0402HP-25NX_RW 0402HP-26NX_RW 0402HP-27NX_RW 0402HP-30NX_RW 0402HP-33NX_RW 0402HP-36NX_RW 0402HP-37NX_RW 0402HP-39NX_RW 0402HP-40NX_RW 0402HP-43NX_RW 0402HP-47NX_RW 0402HP-51NX_RW 0402HPH-56NX_RW 0402HPH-68NX_RW 0402HPH-82NX_RW 0402HPH-R10X_RW 0402HPH-R12X_RW 0402HPH-R15X_RW 0402HPH-R16X_RW 0402HPH-R18X_RW 0402HPH-R22X_RW
