| Brand | Coilcraft |
| Date Code | 24+ |
| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |
RF Inductors - SMD 1005 250nH Unshld 5% 520mA 360mOhms
Features：

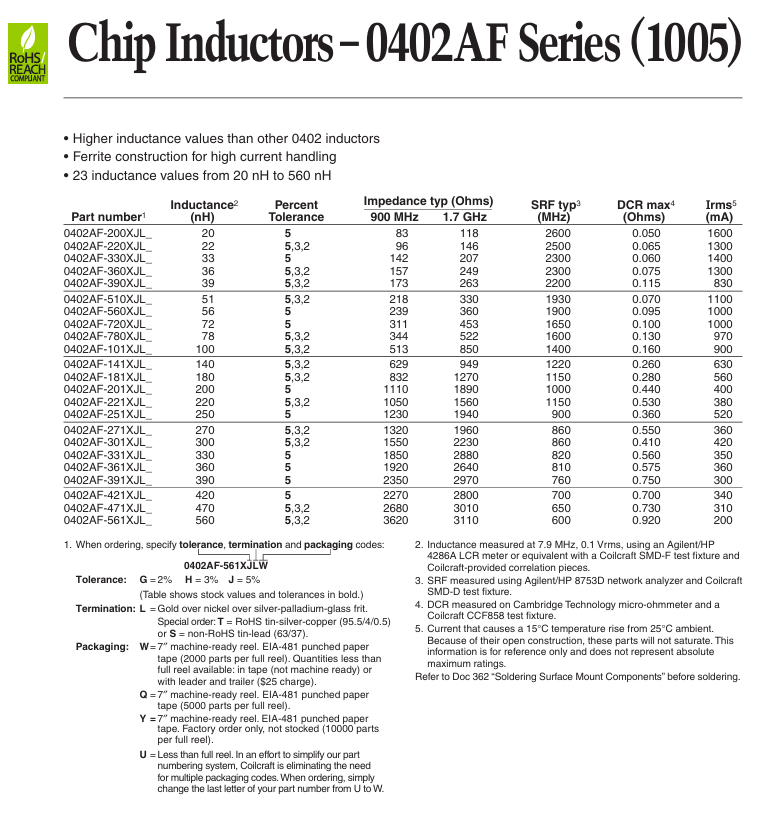

Our 0402AF Series is the first generation of 0402 wirewound ferrite chip inductors. It has inductance values from 20 nH to 560 nH and higher current handling than ceramic constructions of similar values. For much lower DCR, consider our newer 0402DF Series.
Higher inductance values than other 0402 inductors
Ferrite construction for high current handling
±5% inductance tolerance for all values
23 inductance values from 20 nH to 560 nH
|
Product Attribute |
Attribute Value |
|
Inductance: |
250 nH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
520 mA |
|
Maximum DC Resistance: |
360 mOhms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 85℃ |
|
Self Resonant Frequency: |
900 MHz |
|
Termination: |
Standard |
|
Length: |
1.12 mm |
|
Width: |
0.66 mm |
|
Height: |
0.66 mm |
|
Core Material: |
Ferrite |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
7.9 MHz |
|
Unit Weight: |
1 mg |
Similar Models：
0402AF-200XJLW 0402AF-220XJLW 0402AF-330XJLW 0402AF-360XJLW 0402AF-390XJLW 0402AF-510XJLW 0402AF-560XJLW 0402AF-720XJLW 0402AF-780XJLW 0402AF-101XJLW 0402AF-141XJLW 0402AF-181XJLW 0402AF-201XJLW 0402AF-221XJLW 0402AF-251XJLW 0402AF-271XJLW 0402AF-301XJLW 0402AF-331XJLW 0402AF-361XJLW 0402AF-391XJLW 0402AF-421XJLW 0402AF-471XJLW 0402AF-561XJLW
