| Brand | Coilcraft |
| Date Code | 24+ |

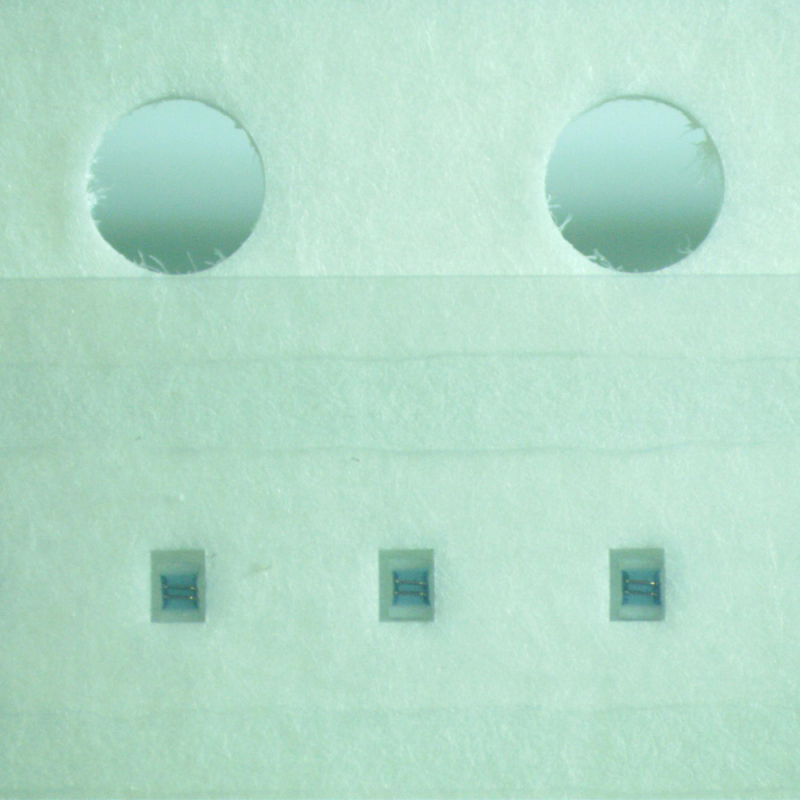

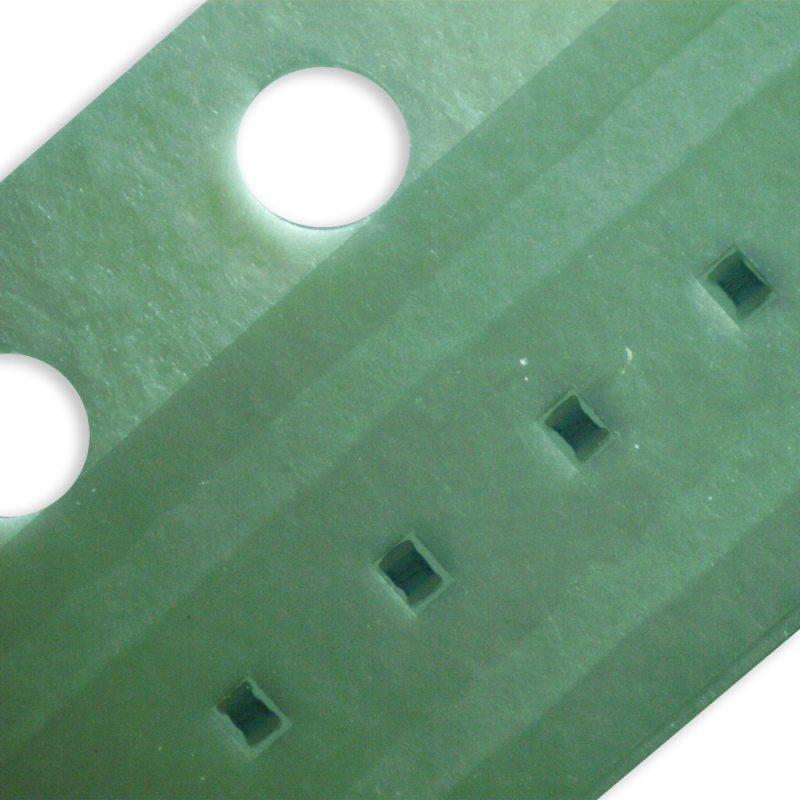

| Packing | Reel |
| Package | SMD/SMT |
| Minimum Packing | 2000pcs |

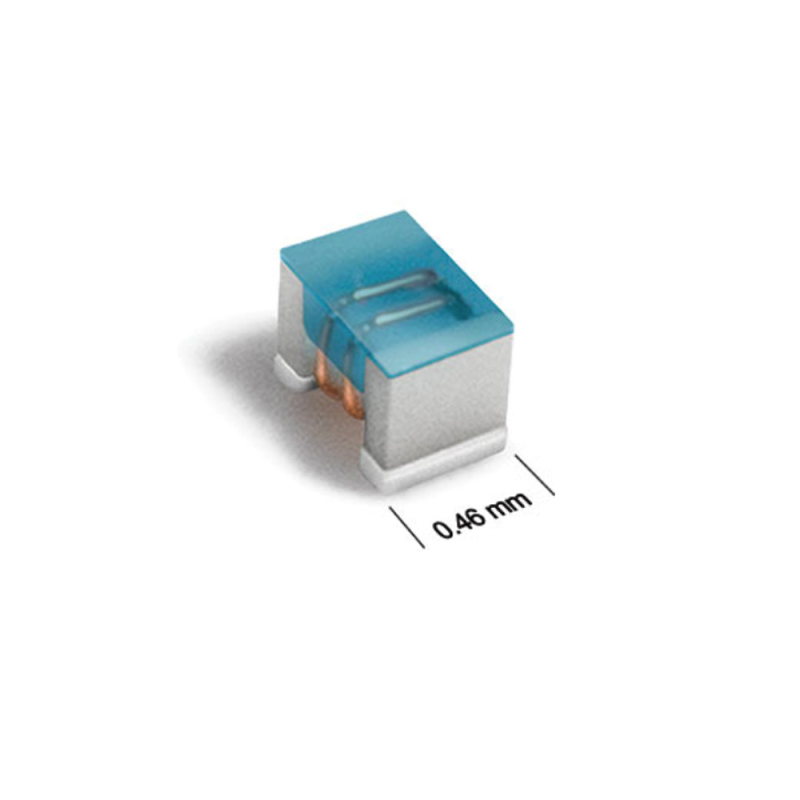

RF Inductors - SMD 0603 1.2nH Unshld 5% 870mA 42mOhms
Features：
Our 0201DS Series inductors are the world's smallest EIA size wirewound inductors, yet they have high Q values - up to 64 at 1.7 GHz! They also feature self-resonant frequencies (SRF) as high as 24 GHz. Excellent for narrowband isolation and filtering in mobile applications.
0201 size – World's smallest wirewound inductors
52 inductance values from 0.5 to 14 nH

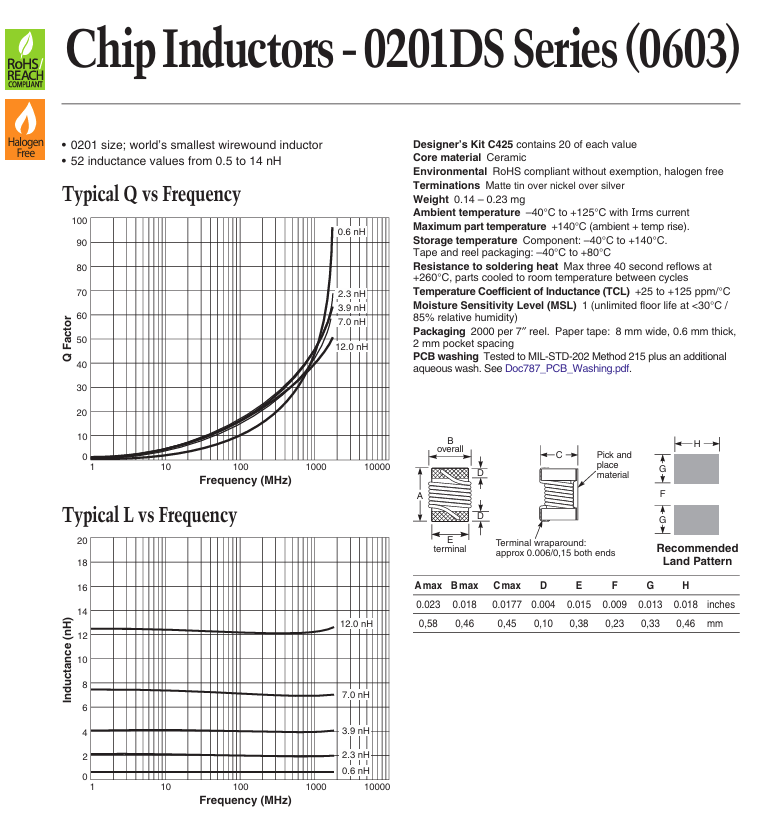

High Q values – up to 64 at 1.7 GHz!
Exceptionally high self-resonant frequencies – greater than 24 GHz
|
Product Attribute |
Attribute Value |
|
Shielding: |
Unshielded |
|
Inductance: |
1.2 nH |
|
Tolerance: |
5 % |
|
Maximum DC Current: |
870 mA |
|
Maximum DC Resistance: |
42 mOhms |
|
Minimum Operating Temperature: |
- 40℃ |
|
Maximum Operating Temperature: |
+ 125℃ |
|
Q Minimum: |
60 |
|
Self Resonant Frequency: |
17.9 GHz |
|
Termination: |
Standard |
|
Length: |
0.58 mm |
|
Width: |
0.46 mm |
|
Height: |
0.45 mm |
|
Subcategory: |
Inductors, Chokes & Coils |
|
Test Frequency: |
250 MHz |
|
Unit Weight: |
0.170 mg |

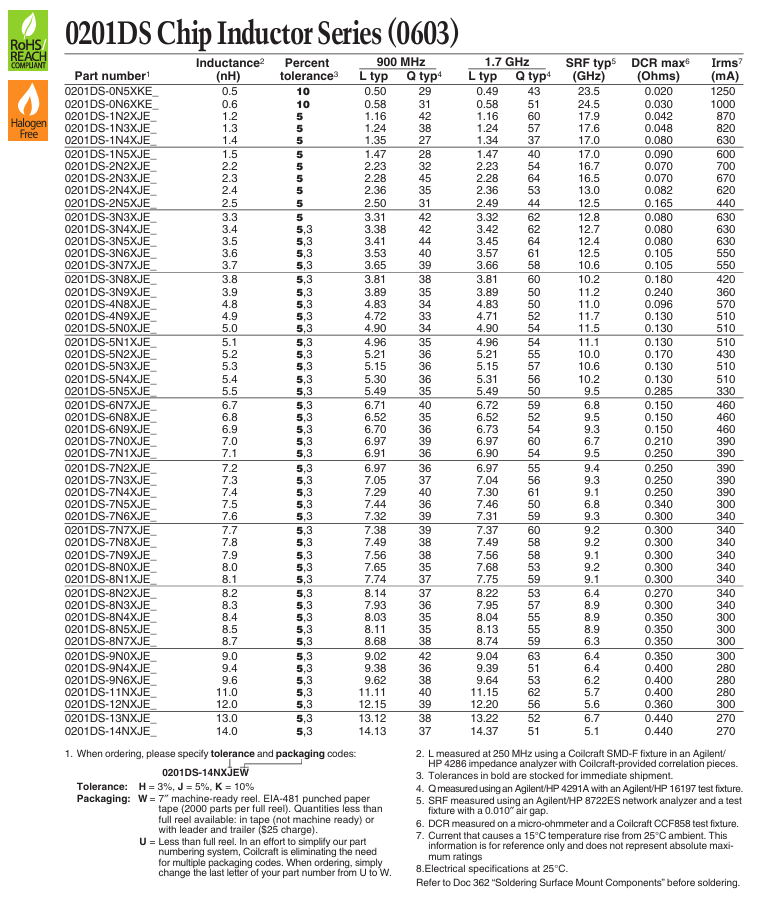

Similar Models：
0201DS-0N5XKEW 0201DS-0N6XKEW 0201DS-1N2XJEW 0201DS-1N3XJEW 0201DS-1N4XJEW 0201DS-1N5XJEW 0201DS-2N2XJEW 0201DS-2N3XJEW 0201DS-2N4XJEW 0201DS-2N5XJEW 0201DS-3N3XJEW 0201DS-3N4XJEW 0201DS-3N5XJEW 0201DS-3N6XJEW 0201DS-3N7XJEW 0201DS-3N8XJEW 0201DS-3N9XJEW 0201DS-4N8XJEW 0201DS-4N9XJEW 0201DS-5N0XJEW 0201DS-5N1XJEW 0201DS-5N2XJEW 0201DS-5N3XJEW 0201DS-5N4XJEW 0201DS-5N5XJEW 0201DS-6N7XJEW 0201DS-6N8XJEW 0201DS-6N9XJEW 0201DS-7N0XJEW 0201DS-7N1XJEW 0201DS-7N2XJEW 0201DS-7N3XJEW 0201DS-7N4XJEW 0201DS-7N5XJEW 0201DS-7N6XJEW 0201DS-7N7XJEW 0201DS-7N8XJEW 0201DS-7N9XJEW 0201DS-8N0XJEW 0201DS-8N1XJEW 0201DS-8N2XJEW 0201DS-8N3XJEW 0201DS-8N4XJEW 0201DS-8N5XJEW 0201DS-8N7XJEW 0201DS-9N0XJEW 0201DS-9N4XJEW 0201DS-9N6XJEW 0201DS-11NXJEW 0201DS-12NXJEW 0201DS-13NXJEW 0201DS-14NXJEW
