What Are the Possible Causes of Severe Heating in Inductors?

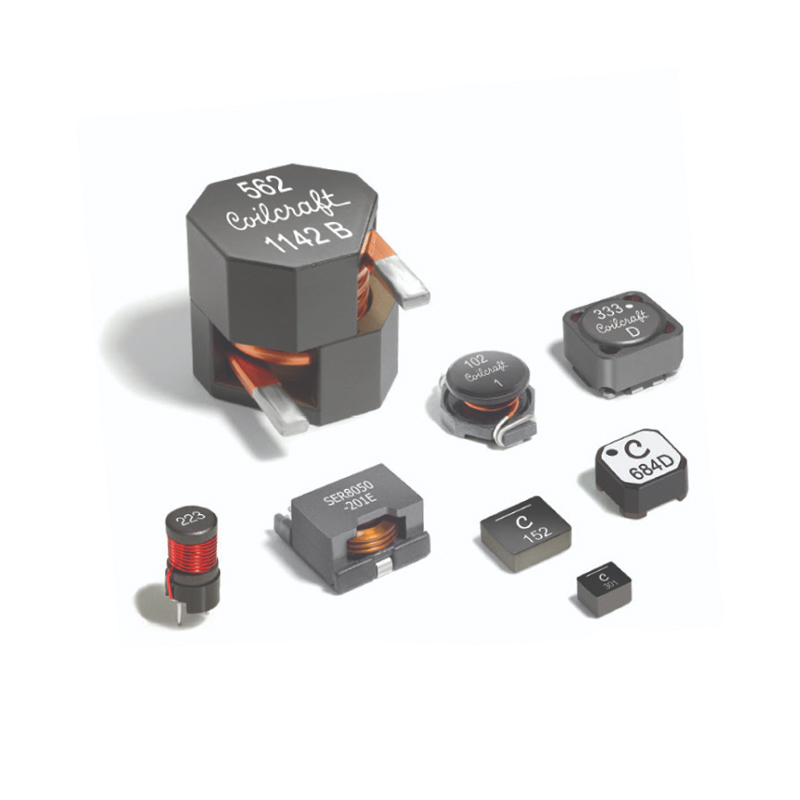

Inductors, as core passive components in electronic circuits for energy storage, filtering, oscillation, and impedance matching, have operational reliability that directly impacts the stability of the entire system. In practical engineering applications, severe overheating of an inductor is a common yet dangerous failure symptom. Prolonged overheating not only accelerates the aging of insulation materials and reduces inductance, but can also lead to magnetic core performance degradation or even burnout, triggering catastrophic system failures. The following analysis systematically examines the primary causes of severe inductor heating from the perspectives of electromagnetic principles, material characteristics, circuit design, and external environmental conditions.

1. Excessive Copper Loss (DC Resistance Loss)

Copper loss is the most direct and prevalent cause of inductor heating. An inductor is wound with enameled copper wire, which inherently possesses a DC resistance (DCR). When current flows through the winding, the resistance dissipates electrical energy as heat according to Joule's law, P=I2 R . If the DCR parameter is neglected during inductor selection, or if cost-saving measures result in the use of excessively fine wire with an excessive number of turns, the DC resistance increases significantly. In high-current applications—such as power inductors in switching power supplies or motor drive circuits—even a DCR of merely a few tens of milliohms can generate several watts of power loss when conducting currents of several amperes or even tens of amperes, causing the inductor temperature to rise sharply. Furthermore, poor winding workmanship, such as loose winding or solder joints with excessive resistance, can effectively increase the DCR and exacerbate heating.

2. Excessive Core Loss (Iron Loss)

Core loss, also known as iron loss, refers to the energy dissipated within a magnetic material under the influence of an alternating magnetic field. It primarily comprises hysteresis loss and eddy current loss.

2.1 Hysteresis Loss

During repeated magnetization cycles, magnetic domains continuously realign through internal friction, consuming energy that is converted into heat. Hysteresis loss is proportional to the area of the hysteresis loop, which in turn depends on the coercivity of the core material and the operating magnetic flux density. If the core material exhibits high coercivity—such as in low-quality ferrite—or if the operating flux density approaches the saturation value, the hysteresis loop widens and losses increase markedly.

2.2 Eddy Current Loss

Alternating magnetic flux induces eddy currents within the core itself. These currents generate Joule heating as they flow through the finite resistance of the core material. The lower the resistivity of the core material, the higher the operating frequency, and the greater the flux density, the more severe the eddy current losses become. To suppress eddy currents, power inductors typically employ ferrite materials (which have high resistivity) or gapped powder cores. However, if low-frequency silicon steel laminations or solid iron cores are erroneously used in high-frequency applications, eddy current losses will escalate dramatically, causing severe core heating and potentially reaching the Curie temperature, at which point the material loses its magnetic properties entirely.

3. Magnetic Saturation Leading to Abnormal Heating

Every inductor has a rated saturation current. When the current flowing through the inductor exceeds this saturation threshold, the permeability of the core drops precipitously, causing a substantial reduction in inductance. At this stage, the inductor loses its ability to suppress current variations, current waveforms develop sharp peaks, and the RMS current value increases. More critically, once saturation is entered, hysteresis and eddy current losses increase nonlinearly because the flux density approaches or reaches the material's saturation flux density, driving the magnetization curve deep into the nonlinear region and causing extreme expansion of the hysteresis loop. Additionally, the reduction in inductance post-saturation increases the ripple current in switching power supplies and similar circuits, further aggravating both copper and core losses. This creates a vicious cycle of "heating → deepening saturation → even more heating." Design margin insufficiency, sudden load transients, or incorrect inductor selection can all lead to magnetic saturation.

4. Improper or Excessively High Operating Frequency

Inductor losses are intimately tied to the switching frequency. On one hand, increasing the frequency significantly amplifies eddy current losses and skin effect losses. On the other hand, the loss density (power loss per unit volume) of core materials generally rises with frequency, especially when operating beyond the material's recommended frequency band. For example, manganese-zinc (Mn-Zn) ferrite is suitable for frequencies up to several hundred kilohertz, whereas nickel-zinc (Ni-Zn) ferrite is better suited for megahertz-range applications. If an Mn-Zn ferrite inductor is used in a radio-frequency circuit operating at several megahertz, core losses will increase abnormally. Moreover, under high-frequency conditions, the distributed capacitance and parasitic parameters of the winding introduce additional dielectric losses and oscillation losses, which are also converted into heat.

5. Skin Effect and Proximity Effect

Under high-frequency, high-current conditions, the skin effect causes current to concentrate in a thin layer near the conductor surface, effectively reducing the conductive cross-sectional area. This makes the AC resistance (ACR) significantly greater than the DC resistance (DCR), leading to a marked increase in copper losses. Simultaneously, the proximity effect causes currents in adjacent conductors within multilayer windings to redistribute due to mutual electromagnetic repulsion or attraction, further altering the current distribution and increasing the effective resistance. If an inductor is wound with a single thick solid wire instead of using multistrand litz wire or flat copper strip, high-frequency copper losses can become extremely severe, manifesting as localized overheating in the winding and potentially melting the enamel insulation.

6. Harmonic Current and Waveform Factors

In modern power electronic circuits, current is often not a pure sine wave but rather a pulsed waveform rich in harmonics—such as triangular or trapezoidal waves in Buck/Boost converters. The harmonic current components are multiples of the fundamental frequency and simultaneously increase both skin-effect losses and high-frequency core losses. A large current waveform factor (ripple current ratio) also implies a high root-mean-square (RMS) current value. Even if the average current does not exceed the rated value, a large ripple current can significantly increase total copper and core losses. If the inductor is selected based solely on the DC average current without considering the impact of ripple current, overheating during actual operation is highly probable.

7. Improper Component Selection and Design

In engineering practice, many inductor overheating issues stem from selection errors. Common design mistakes include:

Insufficient current rating margin: The inductor is sized only for typical load conditions without accounting for peak currents or transient overloads.

Mismatched core material for the application: For example, using standard power ferrite for high-current energy-storage inductors instead of lower-loss powder cores (iron powder, sendust, MPP, etc.).

Improper gap design: An air gap that is too small makes saturation likely, while an excessively large gap increases fringing flux. This leakage flux can induce eddy currents in the winding itself or in nearby metallic structural components, generating additional heat.

Improper inductance value selection: Too small an inductance leads to excessive ripple current, while too large an inductance increases the number of turns and thus the DCR.

8. Thermal Conditions and Environmental Factors

Inductor heating depends not only on internal losses but also on thermal resistance and the heat dissipation path. If the inductor is installed in an enclosed space, mounted in close proximity to a heat source (such as a MOSFET heatsink or a transformer), or if the PCB copper area is insufficient to provide adequate heat sinking, heat cannot be dissipated in a timely manner and the temperature will continue to accumulate. Elevated ambient temperatures also reduce the thermal differential, thereby increasing thermal resistance. Furthermore, if the inductor surface is covered with a thermally insulating sleeve or is obstructed by other components, thermal performance is likewise degraded. Under harsh conditions—such as outdoor high temperatures or poorly ventilated enclosures—even normal losses can lead to severe overheating.

9. Manufacturing Process and Material Defects

Defects at the manufacturing level are also non-negligible contributors to overheating:

Core porosity, cracks, or uneven density: These cause local magnetic flux concentration and uneven loss distribution.

Insufficient sintering or improper material doping: This results in abnormal permeability and deteriorated loss characteristics.

Uneven winding tension or disorganized wire placement: This can cause local compression, insulation damage, or even inter-turn short circuits. A shorted turn will carry an enormous circulating current, generating intense localized heat.

Poor impregnation or encapsulation: Loose windings lead to vibration and micro-shorting, or the thermal conduction path may be broken.

10. External Circuit Abnormalities and Sudden Load Changes

Beyond the inductor itself, external circuit issues can indirectly cause overheating:

Switching device failure or abnormal drive signals: For instance, MOSFET shoot-through or失控的 duty cycles can subject the inductor to abnormal overvoltage or overcurrent.

Output short circuits or overload conditions: A shorted load causes the inductor to momentarily carry an enormous current far exceeding its saturation rating.

Abnormally elevated input voltage: In switching power supplies, a higher input voltage increases the volt-second product, making the core more susceptible to saturation.

Poor current sharing in parallel inductors: In multiphase parallel configurations, if the inductor parameters are inconsistent, one phase may carry excessive current and overheat.

Conclusion

Severe heating in inductors is a complex, multi-factor coupled problem. The root causes can be summarized into two broad categories: excessive internal losses and inadequate heat dissipation. Specifically, copper losses (DCR, skin and proximity effects), core losses (hysteresis and eddy currents), magnetic saturation, harmonic currents, and improper design selection constitute the primary internal causes. Poor thermal management, high ambient temperatures, and external circuit abnormalities serve as significant external contributing factors. In engineering design and troubleshooting, it is essential to comprehensively measure inductor temperature rise, current waveforms, core temperature distribution, and circuit operating points. By optimizing core material selection, increasing wire gauge, adopting litz wire, properly designing air gaps, improving thermal layout, and maintaining adequate current and frequency margins, abnormal inductor heating can be fundamentally suppressed to ensure the long-term reliable operation of the system.
