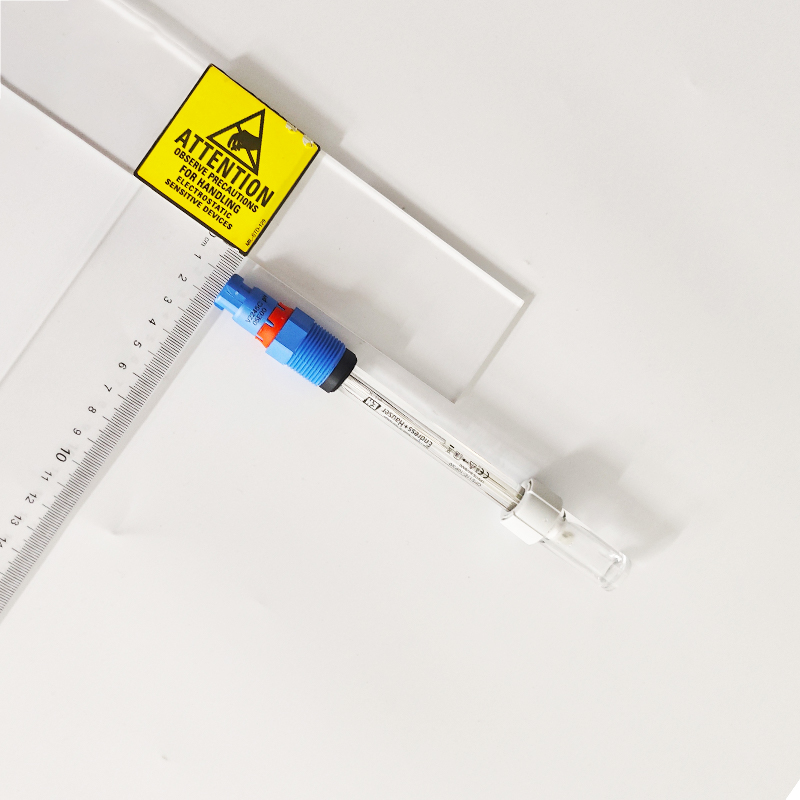

A pH electrode (pH Electrode) is a sensor device based on electrochemical principles, used for precisely measuring the acidity or alkalinity (pH value) of solutions. Its core consists of a glass membrane indicator electrode that selectively responds to hydrogen ions (H⁺) and a reference electrode that provides a stable reference potential. As a core component of Process Analytical Technology (PAT), the pH electrode converts changes in hydrogen ion activity in solution into measurable potential signals through the Nernst Equation (typically generating approximately 59.16mV potential change per 1 pH unit at 25°C), enabling real-time continuous monitoring of solution acid-base status within the 0-14 pH range.
Core Application Scenarios
1. Precision Control in Chemical Production Processes
In the petrochemical, fine chemical, and chlor-alkali industries, pH electrodes are standard monitoring components for reactors, separation towers, and pipeline systems. Taking polymerization reactions as an example, pH directly affects catalyst activity and polymer molecular weight distribution. Online pH electrodes combined with automatic acid/alkali dosing systems can control reaction liquid pH within ±0.05 precision range, avoiding batch quality fluctuations. In Flue Gas Desulfurization (FGD) processes, pH electrodes monitor the acidity/alkalinity of absorber tower slurry, ensuring SO₂ removal efficiency exceeds 95% while preventing equipment corrosion. A large ethylene plant deployed anti-fouling pH electrodes to improve caustic wash tower pH control precision from ±0.5 to ±0.2, reducing annual caustic consumption by 15%.
2. Environmental Monitoring and Water Quality Protection
The environmental protection field is one of the most widely applied scenarios for pH electrodes. In surface water and groundwater automatic monitoring stations, immersion-type or flow-through pH electrodes monitor water body acid-base status 7×24 hours, with data uploaded in real-time to environmental protection department platforms, automatically triggering alarms when pH exceeds the standard range of 6.5-8.5. Wastewater treatment plants install online pH electrodes in biological treatment units (such as aeration tanks and anaerobic tanks) to monitor the acid-base environment of nitrification-denitrification processes, ensuring optimal microbial activity. Additionally, acid rain monitoring stations, industrial wastewater discharge outlets, and marine buoy monitoring stations all rely on pH electrodes to provide basic water quality parameters, supporting environmental law enforcement and pollution source tracing.
3. Food and Beverage Safety Production
From raw material inspection to finished product release, pH electrodes permeate the entire food industry chain. In the dairy industry, portable pH electrodes are used in raw milk acquisition to rapidly screen for alkali-adulterated or sour milk (normal fresh milk pH 6.4-6.8); during fermented milk production, online pH electrodes monitor lactic acid bacteria acid production curves to precisely control fermentation endpoints (typically pH 4.6 for curd formation). The brewing industry utilizes pH electrodes to monitor acid-base balance in grape juice, fermentation liquid, and finished wine, with white wine fermentation pH usually controlled at 3.0-3.3 to inhibit spoilage bacteria. CIP (Clean-In-Place) systems before beverage filling use pH electrodes to confirm complete neutralization of cleaning solutions, preventing cross-contamination. A global beer group equipped sanitary-type pH electrodes across its 80+ worldwide factories, achieving full-process pH traceability from mashing to packaging.
4. Pharmaceutical and Biotechnology Compliant Production
The pharmaceutical industry has extremely strict GMP requirements for pH control. In upstream cell culture of biopharmaceuticals, pH electrodes are installed on bioreactor (fermenter) side walls or tops, working synergistically with DO (dissolved oxygen) and temperature sensors to maintain optimal growth pH environments for CHO cells or microorganisms (typically 7.0±0.2), directly affecting antibody expression levels or antibiotic potency. In downstream purification processes, pH monitoring of chromatography column eluates determines protein collection intervals. In chemical pharmaceutical synthesis steps, pH electrodes monitor critical processes such as acid-base neutralization and crystallization, ensuring drug substance crystal form and purity. Water for Injection (WFI) systems continuously monitor pH to prevent water quality degradation during storage and distribution.
5. Water Quality Management in Power and Energy Industries
Thermal power plant water-steam circulation systems have extremely high requirements for pH control. Feedwater pH must be maintained at 8.8-9.2 (ammonia treatment) or 9.2-9.6 (combined oxygen treatment) to prevent corrosion and scaling of carbon steel pipes. Online pH electrodes are installed at critical locations such as deaerator outlets and economizer inlets, participating in closed-loop regulation of water-steam quality. Primary and secondary circuit water quality monitoring in nuclear power plants similarly relies on special pH electrodes with radiation resistance and high-temperature tolerance. In the new energy sector, high-precision pH monitoring is required for lithium battery electrolyte preparation, pH electroplating solution maintenance, and fuel cell proton exchange membrane humidity management.
6. Agricultural Modernization and Soil Improvement
The development of precision agriculture has promoted the widespread use of pH electrodes in soil testing. Agricultural technology extension departments use soil pH electrodes (with spear-type or slurry-type electrodes) to rapidly determine tillage layer acidity/alkalinity, guiding farmers in scientifically applying lime or sulfur to adjust soil pH and improve nutrient availability. In facility agriculture, online pH electrodes are installed in nutrient solution circulation pipelines of fertigation systems, automatically adjusting acid injection volume to ensure crop roots of tomatoes, cucumbers, and others remain in the optimal absorption environment of pH 5.5-6.5. Aquaculture ponds deploy buoy-type pH monitoring systems that automatically activate aeration or water exchange procedures when pH fluctuates dramatically due to algal photosynthesis (such as pH>9 in the afternoon or pH<7 at dawn), preventing fish stress mortality.
7. Scientific Research, Education, and Laboratory Analysis
In basic research and teaching experiments in chemistry, biology, medicine, and other fields, glass electrodes combined with pH meters are the most fundamental instrumental configurations. From acid-base titration endpoint determination, buffer solution preparation, to enzyme activity assays and protein isoelectric point analysis, pH electrodes provide precise quantitative data. Modern laboratories increasingly favor microelectrodes or flat electrodes for microliter sample pH determination, as well as digital pH electrodes with ISM (Intelligent Sensor Management) technology, enabling plug-and-measure functionality and data traceability.
Technology Evolution Direction
Current pH electrode technology is evolving toward high-temperature resistance (>130°C), hydrofluoric acid corrosion resistance, and self-diagnostic intelligent electrodes. Solid reference systems without filling gel and maintenance-free designs significantly reduce user maintenance intensity. The integration of Industrial Internet of Things (IIoT) transforms pH electrodes into edge computing nodes in smart factories, using predictive algorithms to provide early warnings of electrode aging, ensuring continuity and reliability of process control.
