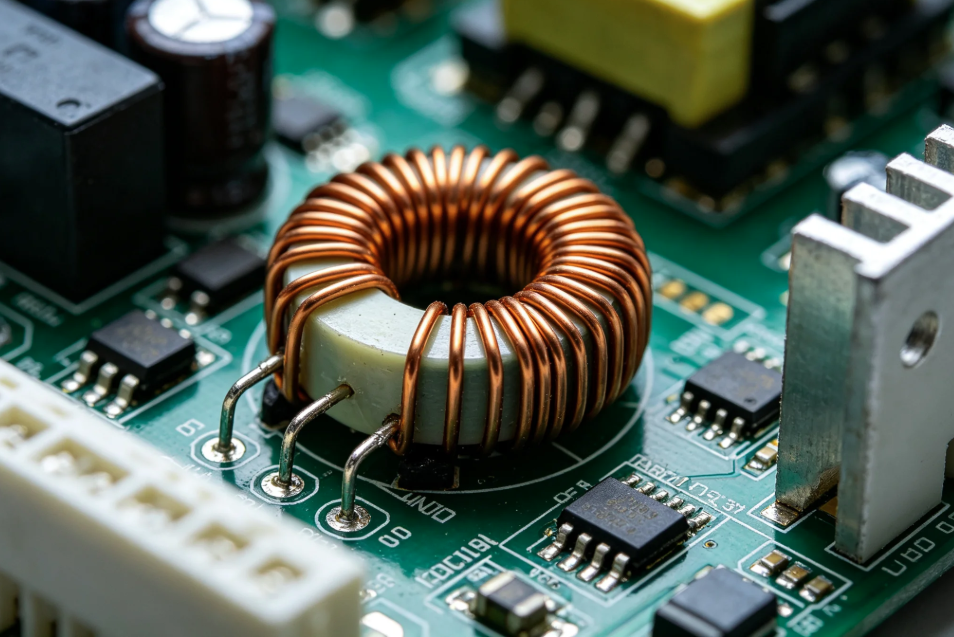

Inductors are core energy storage and filtering components in switching power supplies, widely adopted in various topologies such as BUCK, BOOST and Flyback. They undertake critical functions including electric energy storage, current smoothing, ripple suppression and interference isolation. The rationality of inductor selection directly determines the conversion efficiency, output stability, heat generation and long-term service life of switching power supplies, making it a core part of power hardware design. Different from ordinary signal inductors, power inductors for switching power supplies operate under high-frequency, high-current and dynamic load conditions. Their selection needs to balance electrical performance, operating condition adaptability, physical characteristics and reliability. This paper systematically elaborates on the key parameters and core selection logic to be considered for inductors in switching power supplies.
1. Nominal Inductance: Foundation for Matching Topology and Ripple Requirements
Nominal inductance is the most basic parameter of power inductors, referring to the standard energy storage value of an inductor under rated frequency and rated voltage, with the unit of microhenry (μH). It directly determines the ripple current magnitude and energy storage capability of switching power supplies. At a fixed switching frequency, higher inductance delivers stronger energy storage capacity of the inductor and smaller amplitude of output current ripple, resulting in smoother output waveform of the power supply. However, excessively high inductance will increase the inductor volume and winding turns, and reduce the dynamic response speed of the power supply, leading to slower voltage regulation under sudden load changes. On the contrary, too low inductance will cause sharp rise of ripple current, increased power loss and output noise of the power supply, and even output voltage jitter in severe cases.
Different power supply topologies have significantly different inductance requirements. For BUCK step-down circuits, the minimum inductance shall be calculated according to input-output voltage difference and switching frequency to prevent the inductor from operating in discontinuous conduction mode. For BOOST step-up circuits, the inductance shall be matched to guarantee the voltage boost ratio and current continuity. For flyback power supplies, both the primary energy storage inductance and secondary output ripple shall be considered. Meanwhile, inductance has tolerance ranges; conventional power inductors feature tolerances of ±10% and ±20%. High-precision power supplies need inductors with ±5% tolerance to avoid performance consistency deviation in mass production.
2. Rated Current and Saturation Current: Core Parameters for Operating Condition Safety
Current parameters are core safety indicators for power inductor selection, divided into saturation current (Isat) and temperature-rise current (Irms). Both are indispensable and critical to avoid inductor failure and power supply overheating. Saturation current refers to the current value when the magnetic core of the inductor reaches magnetic saturation. After magnetic saturation, the permeability of the magnetic core drops sharply, the inductance attenuates greatly and the energy storage function fails, which will cause sudden increase of ripple current and overcurrent damage of devices in switching power supplies. The peak operating current of switching power supplies must be strictly lower than the inductor saturation current. A margin of more than 30% shall be reserved in conventional design to prevent instantaneous peak current from triggering magnetic saturation.
Temperature-rise current, namely rated rms current, is the continuous operating current that keeps the inductor's temperature rise within the rated range (typically 40℃) during long-term operation, corresponding to the steady-state load condition of the power supply. If the operating current exceeds the temperature-rise current, the inductor winding will sustain overheating, triggering insulation aging and resistance rise, and may burn out after long-term operation. In selection, the rated output current of the power supply shall be matched. The operating current under full load shall not exceed the temperature-rise current. For heavy-load and overload conditions, a larger margin is required to ensure long-term operation stability.
3. Self-Resonant Frequency and High-Frequency Characteristics: Matching Switching Frequency Conditions
The switching frequency of modern switching power supplies is generally increased to tens of kHz up to several MHz. Under high-frequency conditions, parasitic parameters of inductors will seriously affect performance, so self-resonant frequency (SRF) is a key parameter for high-frequency selection. Inductors have parasitic capacitance of windings, and the inductor together with parasitic capacitance forms a resonant circuit. The self-resonant frequency is the critical resonant point. When the power supply switching frequency approaches or exceeds the inductor self-resonant frequency, the impedance characteristic of the inductor fails; it no longer has energy storage and filtering functions, and even presents capacitive characteristics, resulting in abnormal operation and oscillation failure of the power supply.
The core selection principle is that the inductor self-resonant frequency must be higher than the maximum switching frequency of the power supply. Conventional design requires the SRF to be more than 3 times the switching frequency. Meanwhile, under high-frequency conditions, attention shall be paid to the equivalent series resistance (ESR) of the inductor. Lower ESR means smaller conduction loss of the inductor, higher conversion efficiency and lower heat generation of the power supply. Magnetic core loss rises sharply with increasing frequency at high frequencies. High-frequency low-loss magnetic core materials such as ferrite and powder alloy shall be matched to avoid efficiency reduction caused by high-frequency loss.
4. Magnetic Core Material and Loss Characteristics: Determining Power Supply Efficiency and Heat Generation
The magnetic core material of the inductor directly determines magnetic saturation characteristics, high-frequency loss and temperature stability, serving as a hidden core parameter for selection. Four types of magnetic core materials are commonly used in switching power supply inductors, adapted to different operating conditions. Ferrite cores feature low cost and low high-frequency loss, suitable for medium and small power supplies above 100 kHz, but have low saturation flux density and ordinary low-temperature performance. Powder iron cores have excellent saturation performance and strong anti-saturation capability, suitable for high-current and low-frequency power supplies, yet with relatively large high-frequency loss. Sendust cores have moderate loss, good temperature stability and strong DC bias resistance, making them the mainstream choice for medium and high-power switching power supplies. Nanocrystalline cores have ultra-low high-frequency loss, suitable for high-frequency high-precision power supplies, but with high cost.
During selection, the magnetic core material shall be matched according to power supply power, switching frequency and operating temperature range, and the DC bias characteristic of the magnetic core shall also be considered. Inductors in switching power supplies are subjected to DC current superimposed with AC current for a long time. DC bias will lead to decreased permeability of the magnetic core and inductance attenuation. High-quality magnetic cores can maintain stable inductance under large DC bias to guarantee stable operating conditions of the power supply.
5. Physical Size, Package and Temperature Reliability
In compact power supply design, the package size of the inductor is an important selection constraint. The volume of an inductor is positively correlated with its energy storage capacity. Small-size inductors usually suffer from low saturation current and high loss. A balance among volume, performance and cost is required. Meanwhile, the packaging process of the inductor shall be confirmed. Shielded inductors can effectively suppress magnetic leakage and reduce EMI interference of the power supply, suitable for equipment with high EMC requirements. Unshielded inductors have low cost but large magnetic leakage, which is prone to interfere with peripheral circuits and only applicable to ordinary operating conditions.
Temperature reliability determines the service life of inductors. Attention shall be paid to the operating temperature range and temperature drift characteristics of inductors. Industrial-grade switching power supplies need to adapt to wide temperature environments of -40℃~125℃. The winding insulation class and magnetic core temperature resistance of inductors shall match the overall temperature range of the equipment. Meanwhile, smaller temperature drift coefficients of inductance and saturation current at high and low temperatures deliver more stable performance of the power supply across the full temperature range, avoiding problems such as low-temperature saturation and sharp rise of high-temperature loss.
The selection of inductors for switching power supplies is not a simple matching of single parameters, but a comprehensive matching process based on power supply topology, switching frequency, load conditions and application scenarios. The core selection logic is as follows: take inductance meeting ripple and dynamic response requirements as the foundation, take saturation current and temperature-rise current to guarantee operating condition safety as the core, adopt self-resonant frequency and magnetic core material to adapt to high-frequency conditions, and take physical package, EMI characteristics and temperature reliability into consideration. Properly selected inductors can maximize the conversion efficiency of switching power supplies, reduce heat generation and ripple interference, and ensure long-term stable operation of power supplies, which is a key foundation for high-performance and high-reliability design of switching power supplies.
